Radio Replacement (Chevrolet/GMC With IOB)

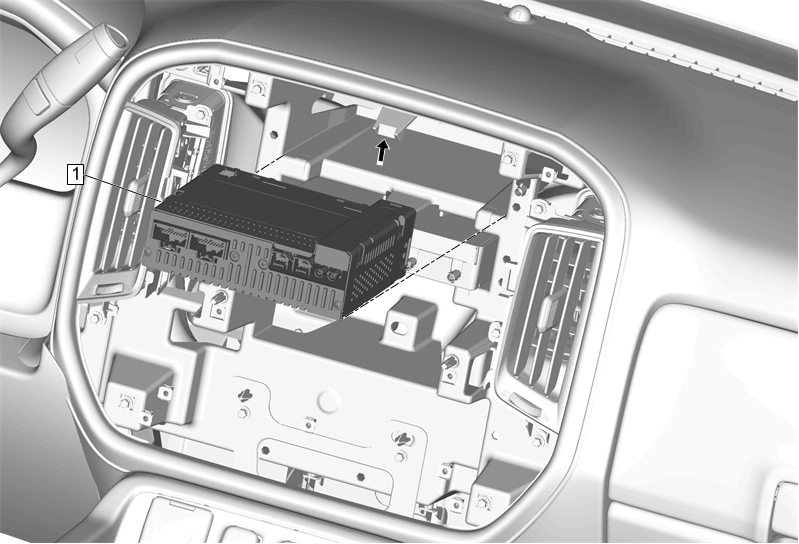

Fig 1: Radio (Chevrolet/GMC With IOB)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Driver Information Display. Refer to Driver Information Display Replacement (Chevrolet/GMC with IOB)
1	Radio Procedure Release the retaining tab. Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Driver Information Display. Refer to Driver Information Display Replacement (Chevrolet/GMC with IOB)

Radio

Procedure

Release the retaining tab.
Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
