Driver Information Display Replacement (Chevrolet/GMC With IOB)

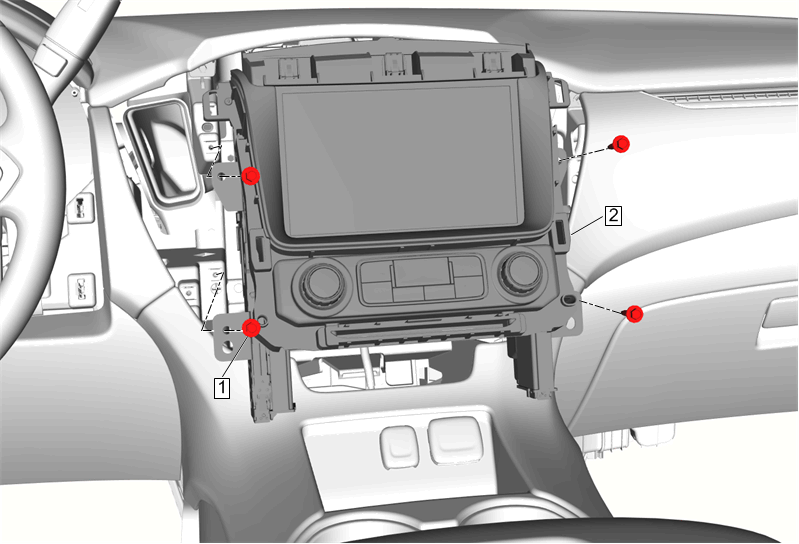

Fig 1: Driver Information Display (Chevrolet/GMC With IOB)

GM4230513

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Remove Instrument Panel Center Air Outlet - Left Side. Refer to Instrument Panel Center Air Outlet Replacement - Left Side (Chevrolet/GMC)
Remove Instrument Panel Center Air Outlet - Right Side. Refer to Instrument Panel Center Air Outlet Replacement - Right Side (Chevrolet/GMC)

1

Driver Information Display Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Driver Information Display

Procedure

Disconnect all electrical connectors.
Transfer components as necessary.
Refer to Control Module References for programming and setup information, if required.
