Rear Compartment Lift Window Replacement (Chevrolet, GMC)

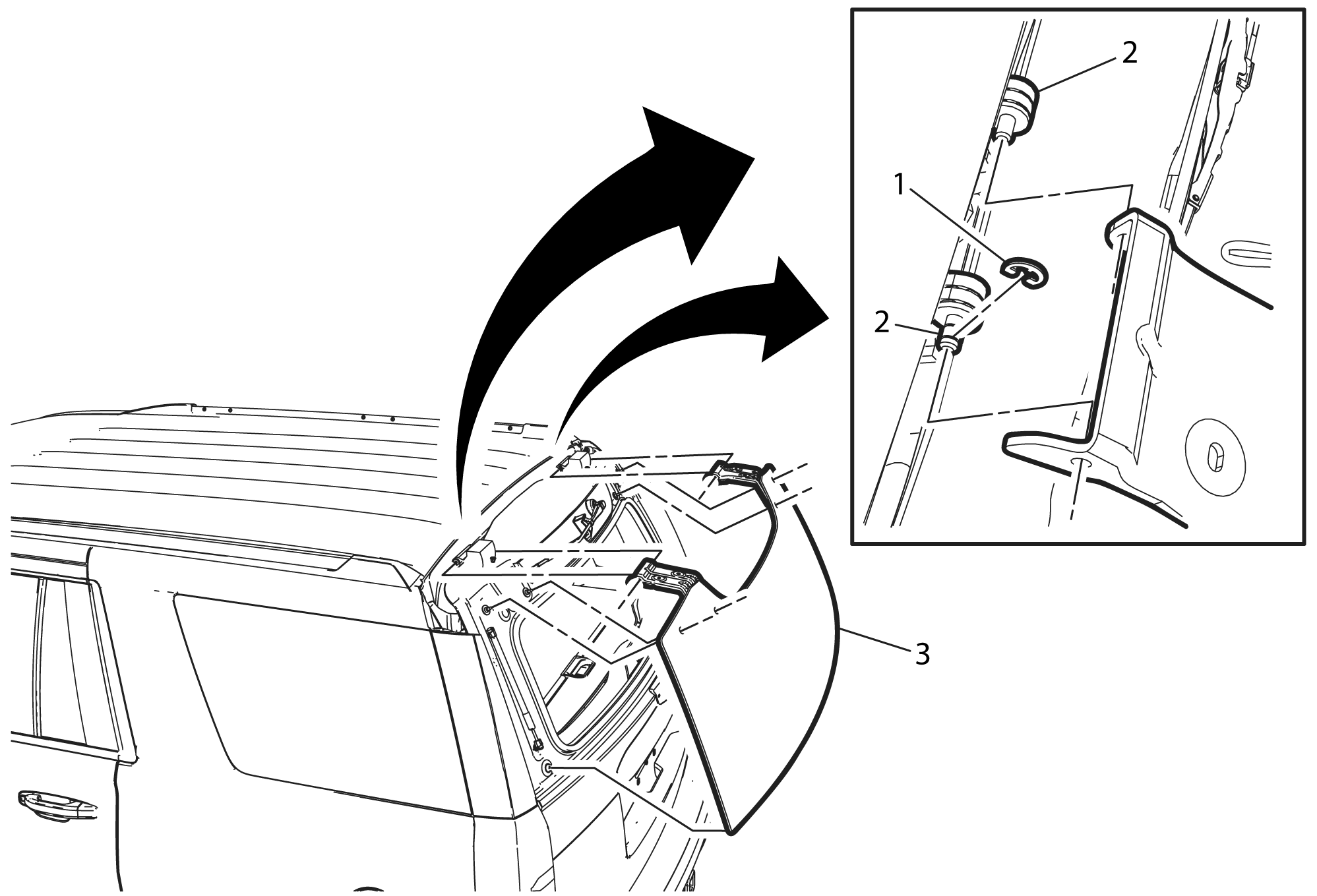

Fig 1: Rear Compartment Lift Window (Chevrolet, GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure Remove the rear end spoiler. Refer to Rear End Spoiler Replacement . Disconnect the rear defogger electrical connectors. Disconnect the liftgate window support struts. Refer to Liftgate Strut Replacement (Manual)Liftgate Strut Replacement (Power Assist) .
1	Rear Compartment Lift Window Hinge C-Clip (Qty: 2) Procedure Remove both c-clips from rear compartment lift window hinge pins.
2	Rear Compartment Lift Window Hinge Pin (Qty: 2) Procedure Lift the window upward and slide window outward off of the pins.
3	Rear Compartment Lift Window Procedure Transfer all necessary parts.
