Rear End Spoiler Replacement

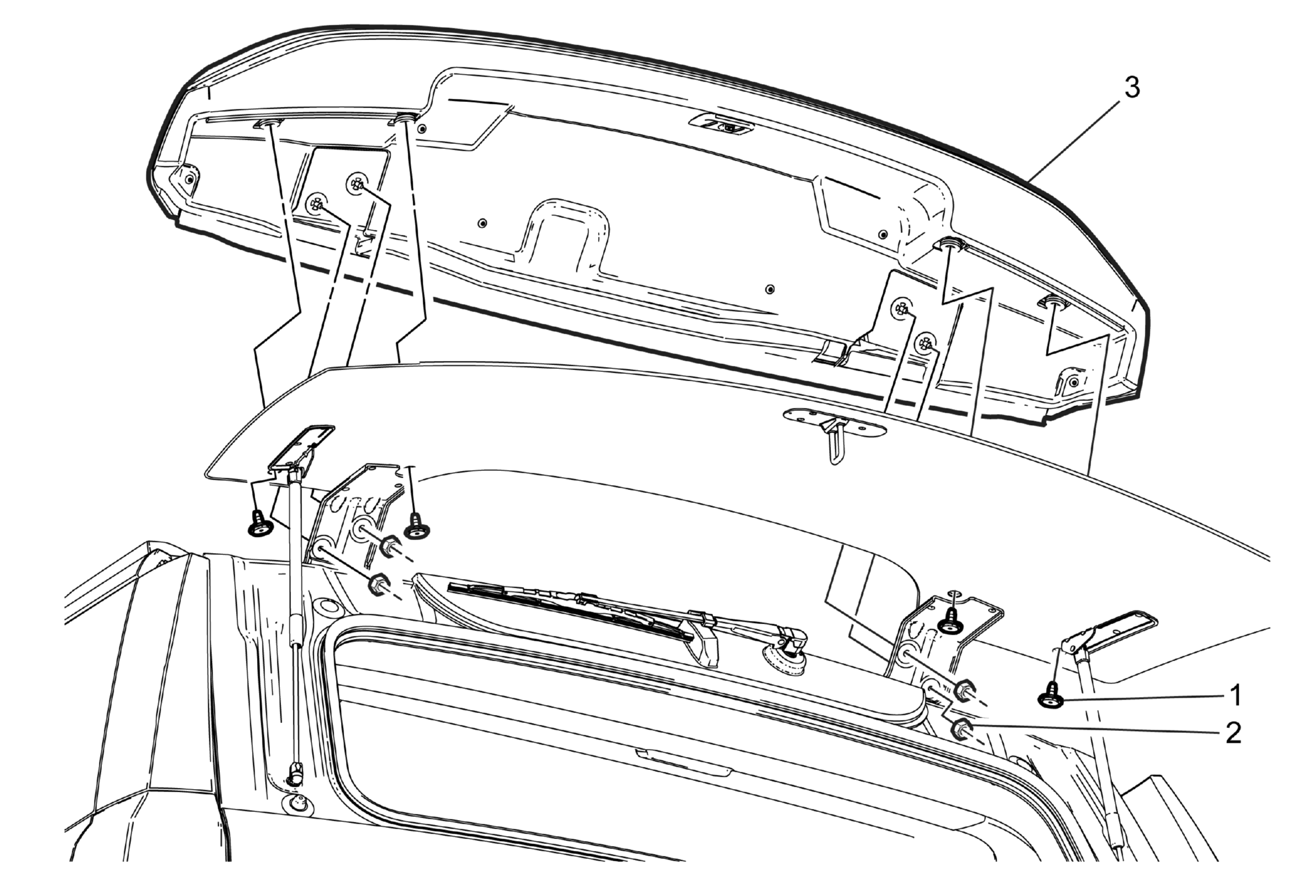

Fig 1: Rear End Spoiler
GM3636219Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the roof rear header garnish molding. Refer to Roof Rear Header Garnish Molding Replacement (Standard Wheelbase)Roof Rear Header Garnish Molding Replacement (Extended Wheelbase) .
1 Rear End Spoiler Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Rear End Spoiler Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
3 Rear End Spoiler

Procedure

  1. Disengage grommet and pull wire and hose through the hole.
  2. Disconnect electric connector.
  3. Disconnect the rear window washer hose.
  4. Pull rear end spoiler up and remove from vehicle.
  5. Transfer parts as needed.
