Rear Side Door Wiring Harness Replacement (Short Wheelbase)

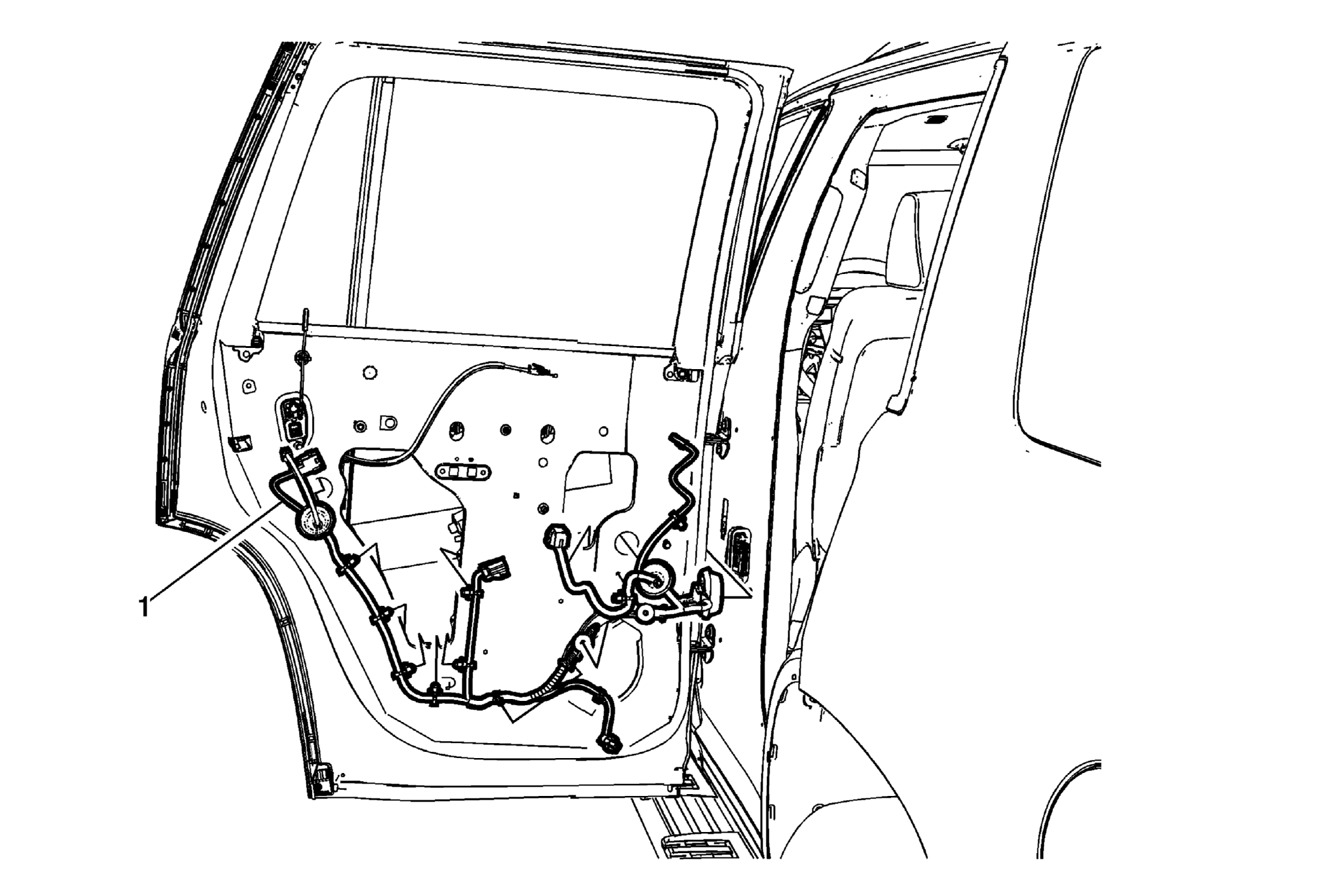

Fig 1: Rear Side Door Wiring Harness (Short Wheelbase)

GM3611338

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the rear side door pull handle bracket. Refer to Rear Side Door Pull Handle Bracket Replacement .
Remove the radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement .
Remove the water deflector.
Remove the rear side door window front channel. Refer to Rear Side Door Window Front Channel Replacement (Short Wheelbase)Rear Side Door Window Front Channel Replacement (Long Wheelbase) .
Remove the rear side door window rear channel. Refer to Rear Side Door Window Rear Channel Replacement (Short Wheelbase)Rear Side Door Window Rear Channel Replacement (Long Wheelbase) .

1

Rear Side Door Wiring Harness
Procedure
Disconnect electrical connectors.
