Rear Side Door Window Front Channel Replacement (Short Wheelbase)

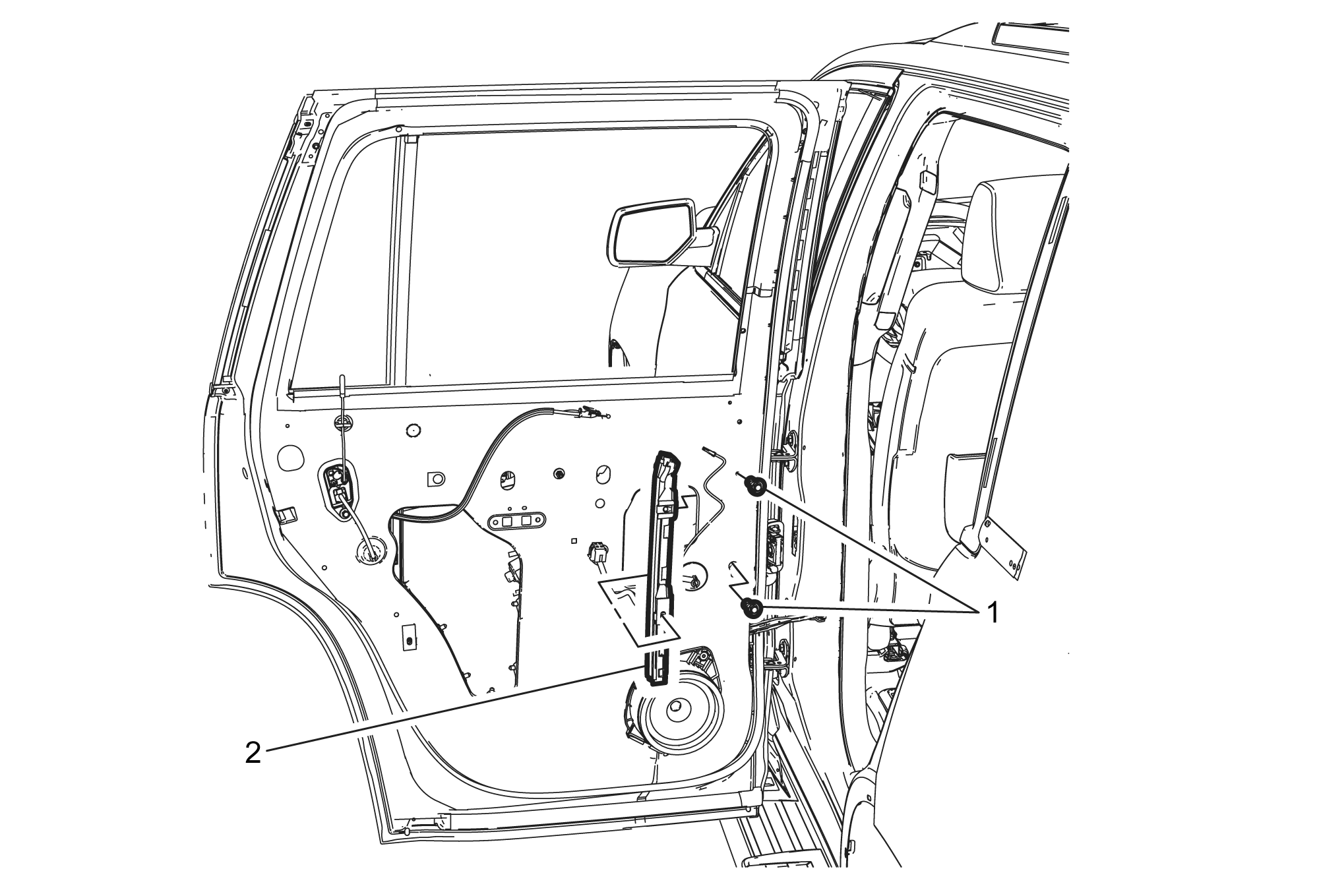

Fig 1: Rear Side Door Window Front Channel (Short Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door pull handle bracket. Refer to Rear Side Door Pull Handle Bracket Replacement . Remove the rear side door water deflector. Position the door window as needed to gain access to the retainer bolt.
1	Rear Side Door Window Channel Retainer Bolt (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Front Channel Retainer NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Remove the rear side door pull handle bracket. Refer to Rear Side Door Pull Handle Bracket Replacement .
Remove the rear side door water deflector.
Position the door window as needed to gain access to the retainer bolt.

Rear Side Door Window Channel Retainer Bolt (Qty:2)

CAUTION:

Tighten
11 N.m (97 lb in)

Rear Side Door Window Front Channel Retainer

NOTE:

Inspect the window for proper operation before installing the door trim.
