Rear Side Door Weatherstrip Replacement - Door Side (Short Wheelbase)

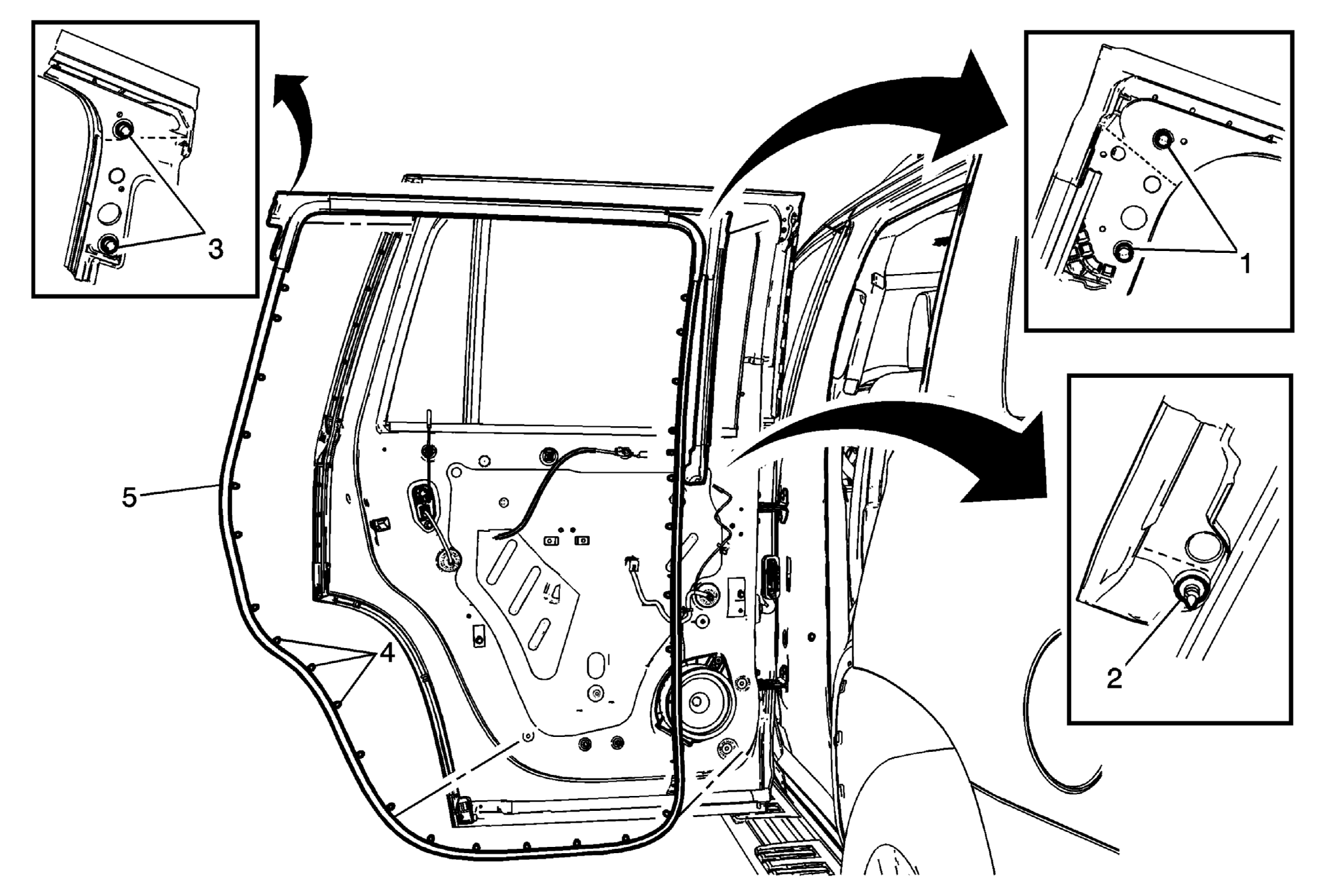

Fig 1: Rear Side Door Weatherstrip - Door Side (Short Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the door to the full open position. Remove the rear side door check link bolt. Refer to Rear Side Door Check Link Replacement (Chevrolet, GMC with Short Wheelbase) Rear Side Door Check Link Replacement (Cadillac with Short Wheelbase) .
1	Rear Side Door Weatherstrip Upper Corner Clip (Qty:2) Procedure Using the appropriate tool, remove the push-in clips from around the door.
2	Rear Side Door Weatherstrip Clip
3	Rear Side Door Weatherstrip Upper Corner Clip (Qty:2)
4	Rear Side Door Weatherstrip Clip (Qty:38)
5	Rear Side Door Weatherstrip Procedure Ensure that the weatherstrip is fully seated in the door frame. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
