Rear Side Door Check Link Replacement (Cadillac With Short Wheelbase)

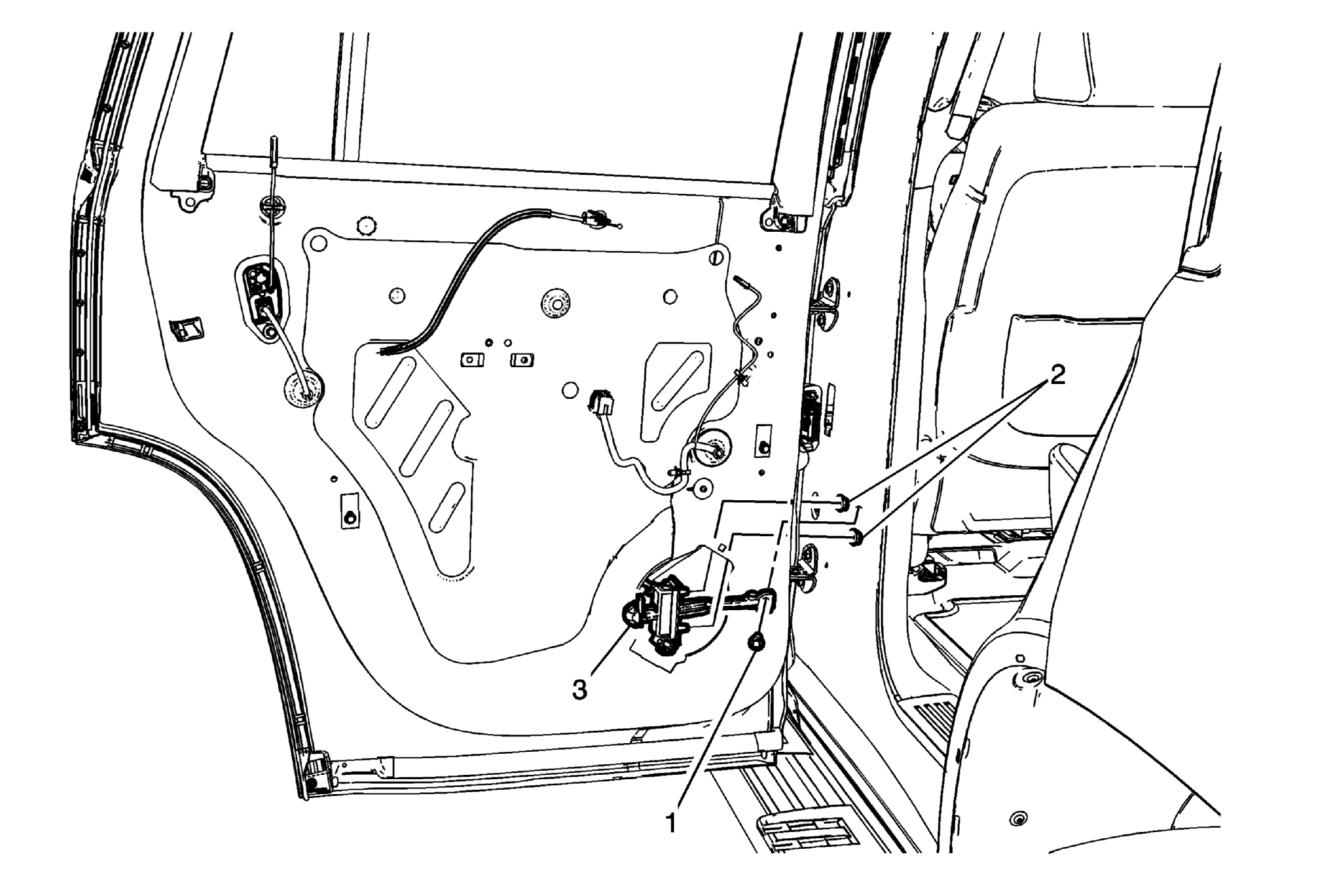

Fig 1: Rear Side Door Check Link (Chevrolet, GMC with Short Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the door to the full open position. Place the window in the full up position. Remove rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement .
1	Rear Side Door Check Link Bolt CAUTION: Refer to Fastener Caution Procedure Slide the check link cover rearward to gain access to the check link bolt. Tighten 22 N.m (16 lb ft)
2	Rear Side Door Check Link Nut (Qty: 2) Tighten 10 N.m (89 lb in)
3	Rear Side Door Check Link Procedure Transfer all necessary components. NOTE: Inspect the door for proper operation before installing the door trim.
