Air Cleaner Bracket Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

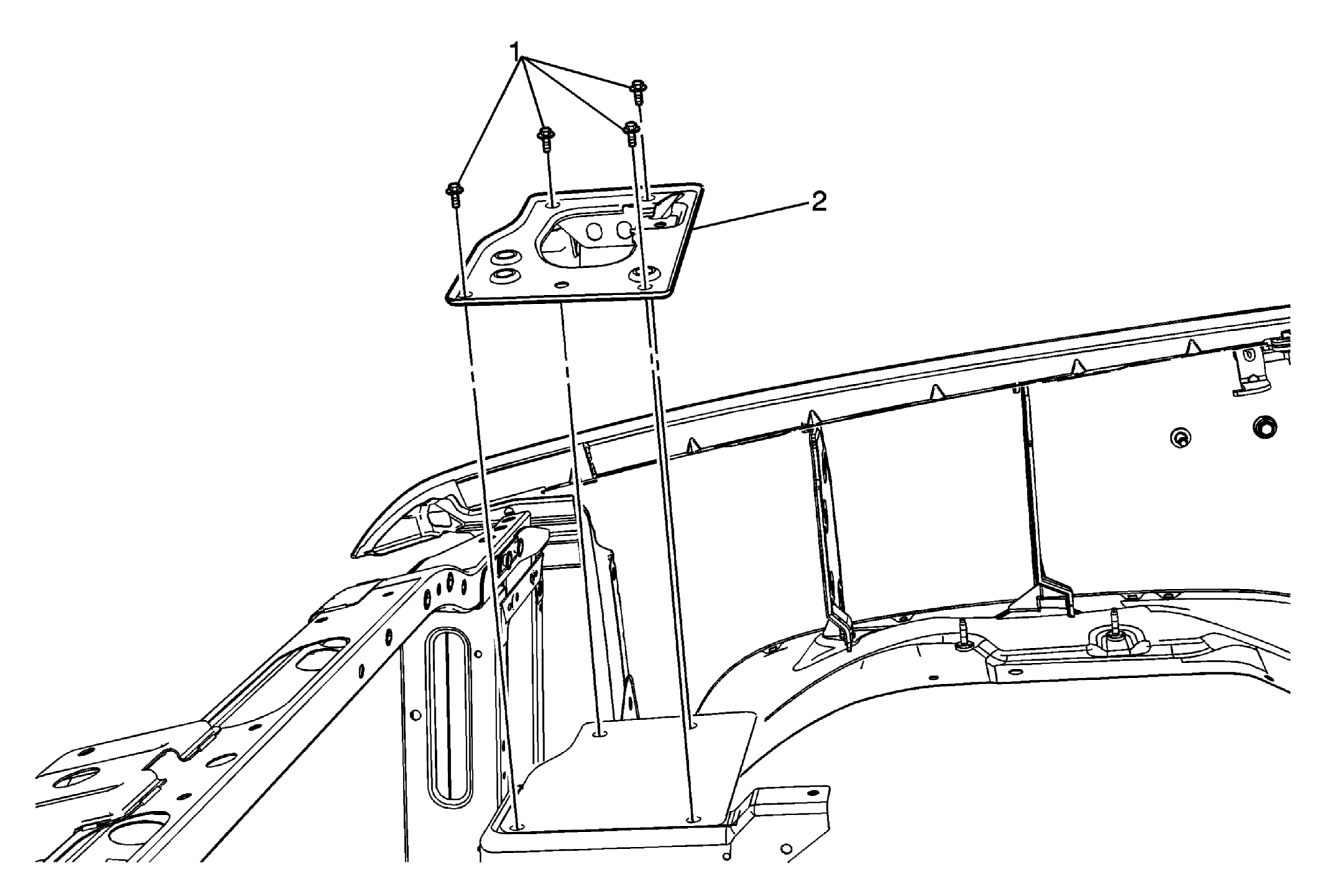

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . |
|
| 1 | Air Cleaner Bracket Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution Tighten 10 N.m (89 lb in) |
| 2 | Air Cleaner Bracket |
