Air Cleaner Assembly Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

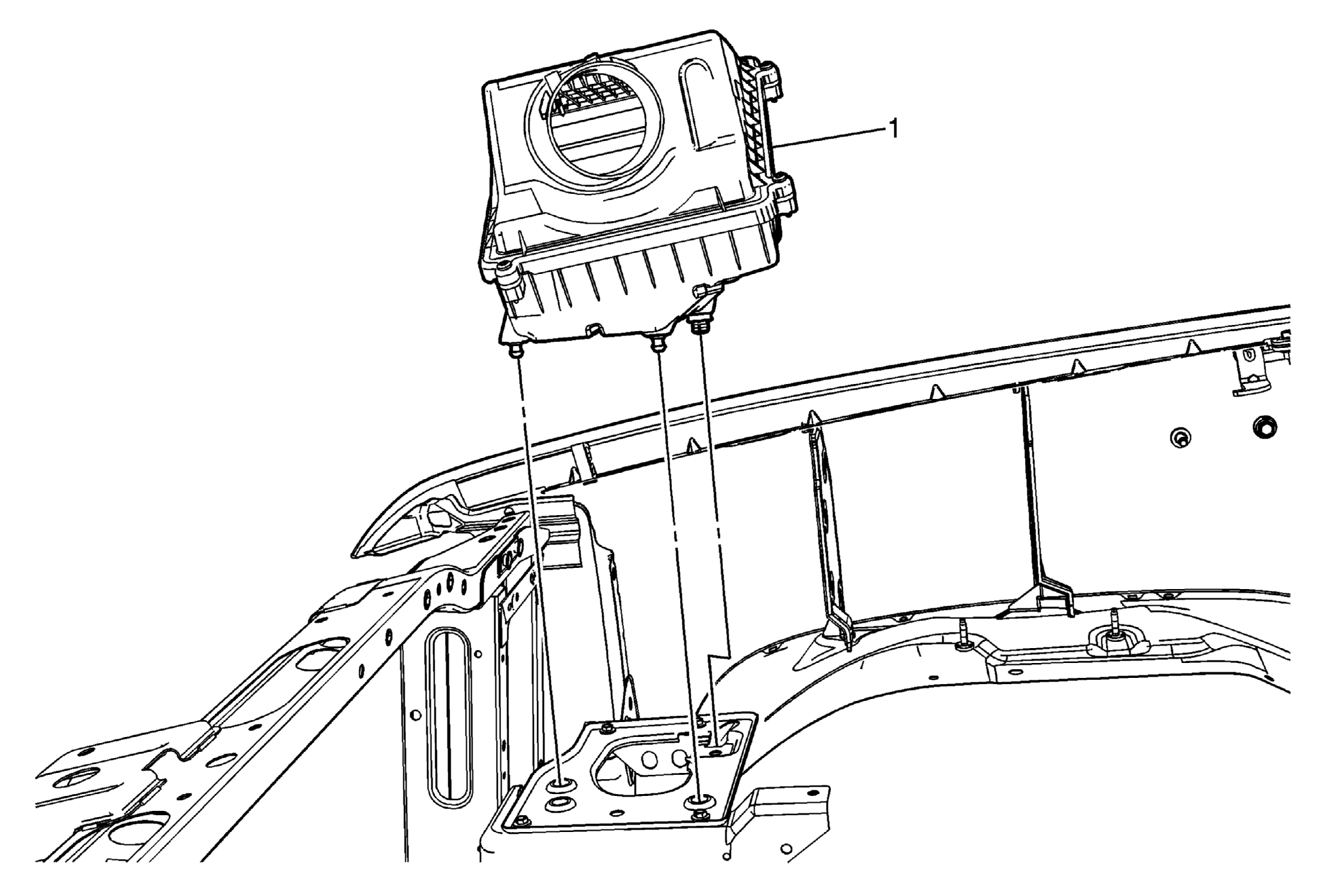

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures If replacing, remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement . Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Air Cleaner Assembly TIP: Pull upward in a jerking manner in order to disengage the air cleaner housing from the insulators.

Callout

Component Name

Preliminary Procedures

If replacing, remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .
Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Air Cleaner Assembly
TIP: Pull upward in a jerking manner in order to disengage the air cleaner housing from the insulators.
