Input Shaft Pilot Bearing Replacement

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

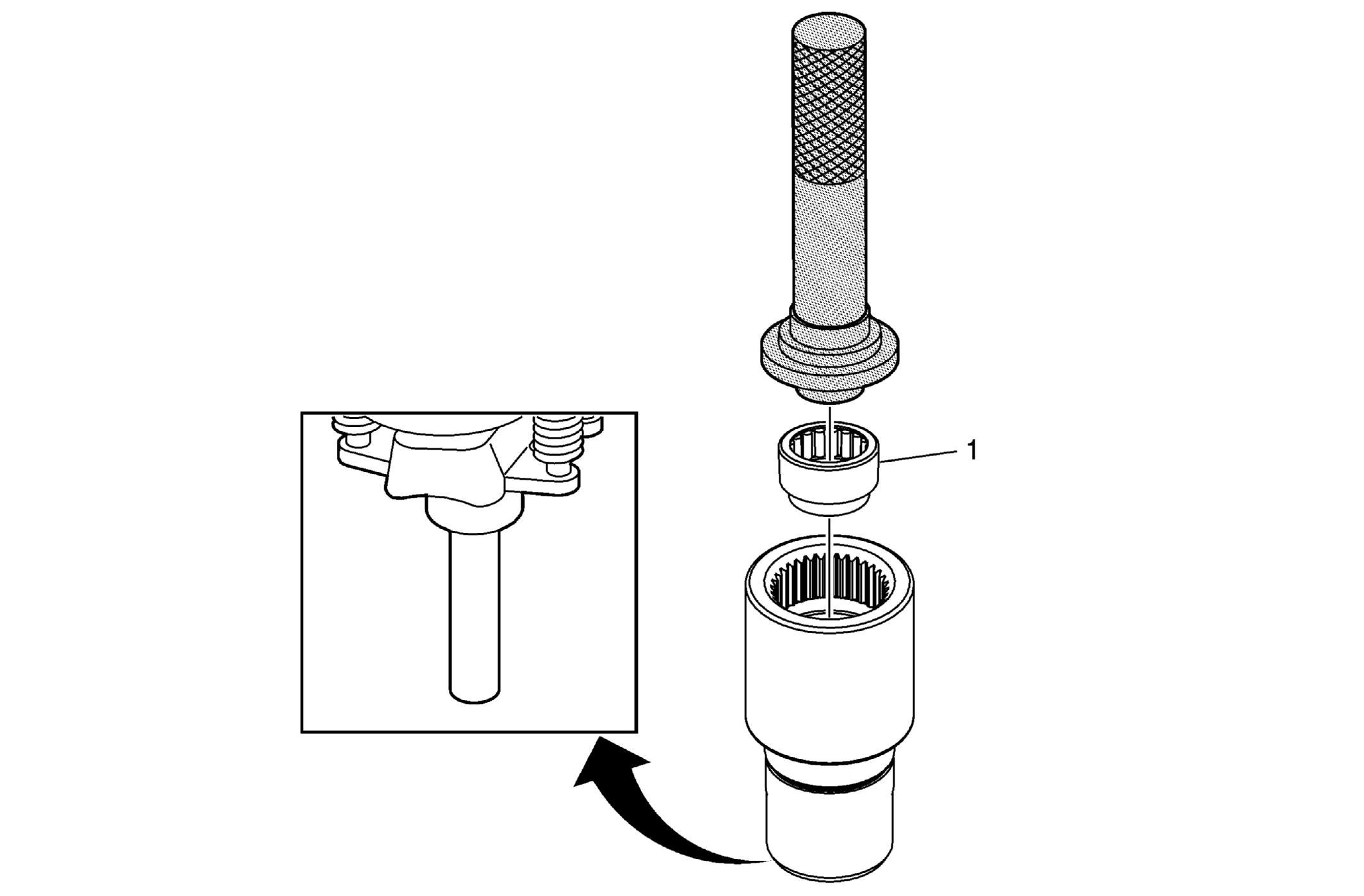

Fig 1: Input Shaft Pilot Bearing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Ensure the bearing is installed squarely into the input shaft bore.
1	Transfer Case Input Shaft Pilot Bearing Procedure Using a suitable adapter and an arbor press, remove the input shaft pilot bearing by going through the front of the input gear. Install the bearing using the small side of the DT-48212 bearing installer. Press the bearing until the tool bottoms on the input shaft. Special Tools DT-48212 Input Shaft Pilot Bearing Installer J 8092 Universal Driver For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Ensure the bearing is installed squarely into the input shaft bore.

Transfer Case Input Shaft Pilot Bearing

Procedure

Using a suitable adapter and an arbor press, remove the input shaft pilot bearing by going through the front of the input gear.
Install the bearing using the small side of the DT-48212 bearing installer.
Press the bearing until the tool bottoms on the input shaft.

Special Tools

DT-48212 Input Shaft Pilot Bearing Installer
J 8092 Universal Driver

For equivalent regional tools, refer to Special Tools .
