Special Tools
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
| Illustration | Tool Number/Description |
|---|---|
| DT-35512 J-35512 Inner Pinion Bearing Installer |
|
| DT-42738 J-42738 Seal Installer |
|
| DT-44737 J-44737 Shift Rail Bearing Remover |
|
| DT-44907 J-44907 Bearing Installer |
|
| DT-45380 J-45380 Transfer Case Rear Bushing Remover and Installer |
|
| DT-45759 J-45759 Assembly Fixture |
|
| DT-48022 Output Bushing Installer |
|
| DT-48209 Bushing Remover |
|
| DT-48210 Seal Installer |
|
| DT-48211 Drive Sprocket Bearing Installer |
|
| DT-48212 Input Shaft Pilot Bearing Installer |
|
| DT-48213 Clutch Pack Height Gauge |
|
| DT-50648-A Seal Installer |
|
| DT-50649 Seal Installer |
|
| EL-49741 9V + Power Source Harness |
|

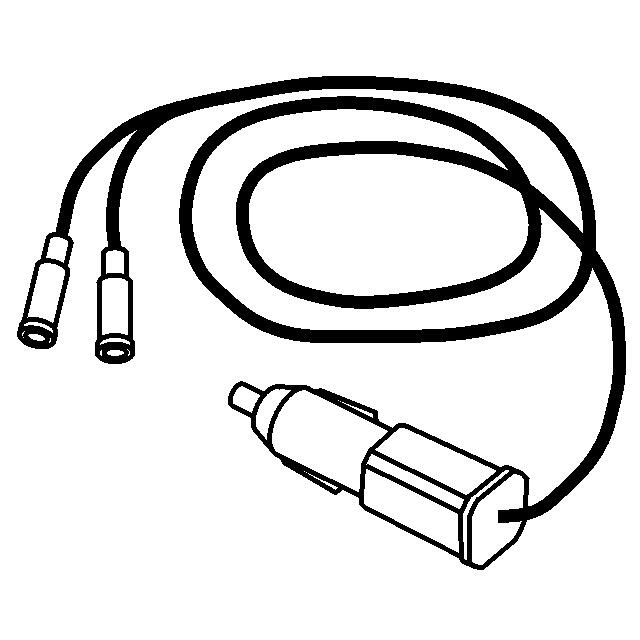

| EL-49742 Battery Voltage B+ and Ground Source Harness |
|
| GE-8092 J-8092 Driver Handle |
|
| GE-02619-A J-02619-A Slide Hammer |
|
| GE-3289-20 J-3289-20 Holding Fixture |
|
| J-45278 Seal Remover |
