Front Output Shaft Front And Rear Bearing Replacement

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

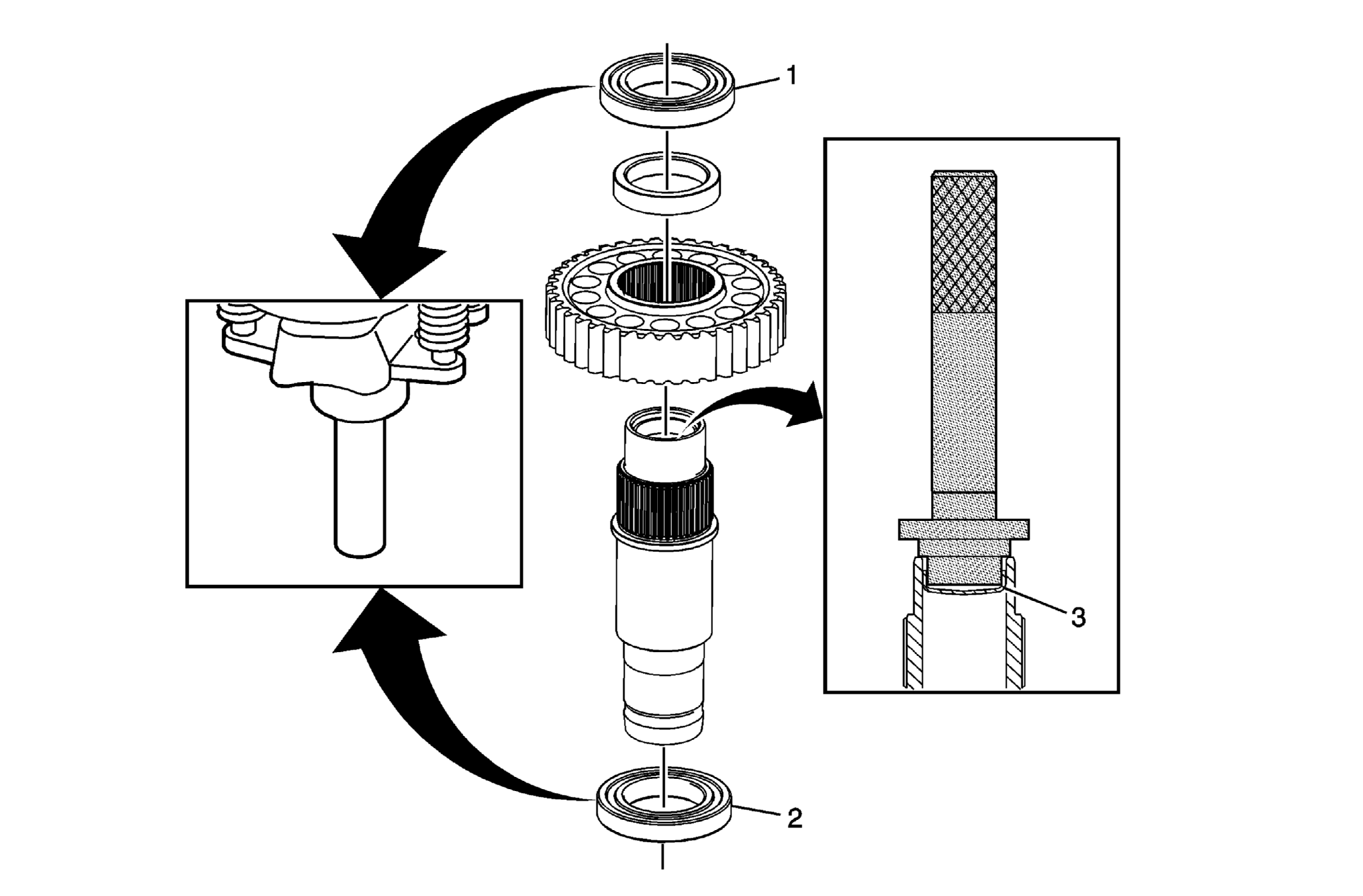

Fig 1: Front Output Shaft Front & Rear Bearing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Ensure the bearings are installed squarely on the front output shaft. Using a suitable adapter and an arbor press, remove the bearing assemblies from the front output shaft.
1	Transfer Case Front Output Shaft Rear Bearing Assembly NOTE: Using a suitable adapter and an arbor press, install the bearing until the bearing bottoms against the spacer.
2	Transfer Case Front Output Shaft Front Bearing Assembly NOTE: Using a suitable adapter and an arbor press, install the bearing until the bearing bottoms on the front output shaft.
3	Transfer Case Front Output Shaft Hole Plug Procedure Using a suitable adapter and an arbor press, remove the front output shaft hole plug by going through the front of the front output shaft. Install the plug using the large side of the DT-48212 bearing installer. Press the plug until the tool bottoms on the front output shaft. Special Tools DT-48212 Input Shaft Pilot Bearing Installer J 8092 Universal Driver For equivalent regional tools, refer to Special Tools .
