Fuel Feed Pipe Replacement (At Engine)

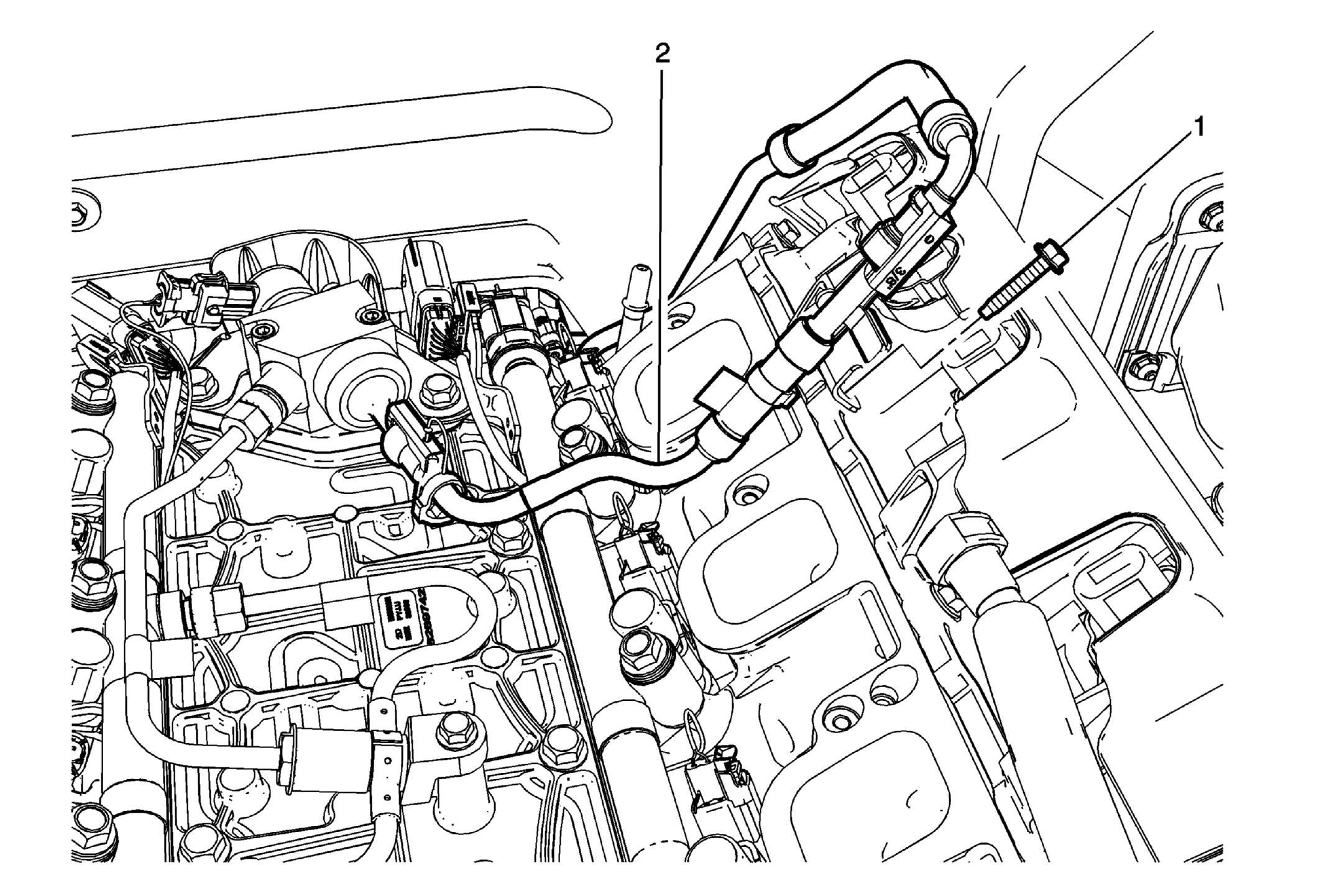

Fig 1: Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Relieve the fuel pressure. Fuel Pressure Relief Fuel Pump Insulator Replacement
1	Fuel Feed Pipe Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Feed Pipe Procedure Disconnect the fuel feed pipe metal collar fittings. Metal Collar Quick Connect Fitting Service

Callout

Component Name

Preliminary Procedures

Fuel Feed Pipe Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Feed Pipe
Procedure
Disconnect the fuel feed pipe metal collar fittings. Metal Collar Quick Connect Fitting Service
