Radiator Outlet Hose Replacement (L96)

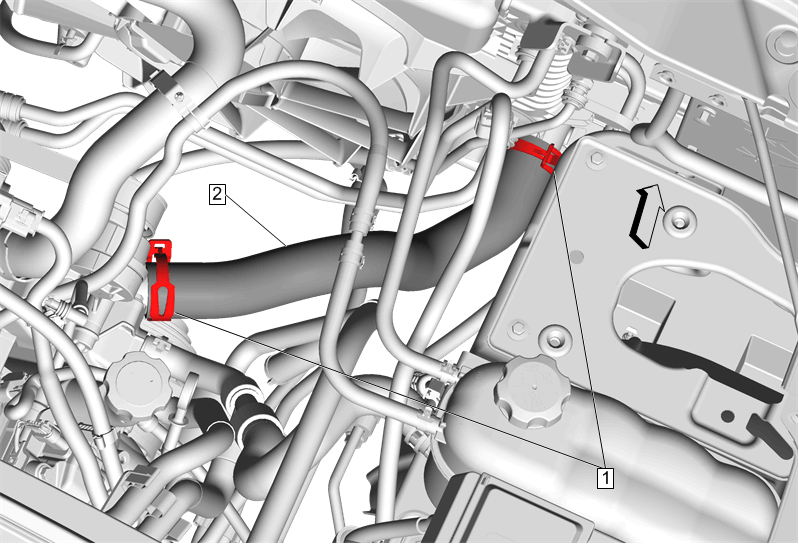

Fig 1: Radiator Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96) . Remove the air cleaner resonator outlet duct. Air Cleaner Resonator Outlet Duct Replacement . Remove the air cleaner assembly. Air Cleaner Assembly Replacement
1	Radiator Outlet Hose Clamp Procedure Disengage tension on the radiator outlet hose clamp using BO-38185 hose clamp pliers. Hose Clamp Replacement Guidelines - Spring Type Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Outlet Hose Procedure Fill the engine cooling system to the proper level. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96) . Inspect the cooling system for leaks. Cooling System Leak Testing (L96) .

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96) .
Remove the air cleaner resonator outlet duct. Air Cleaner Resonator Outlet Duct Replacement .
Remove the air cleaner assembly. Air Cleaner Assembly Replacement

Radiator Outlet Hose Clamp
Procedure
Disengage tension on the radiator outlet hose clamp using BO-38185 hose clamp pliers. Hose Clamp Replacement Guidelines - Spring Type
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Outlet Hose

Procedure

Fill the engine cooling system to the proper level. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96) .
Inspect the cooling system for leaks. Cooling System Leak Testing (L96) .
