Preliminary Procedure
- Drain the cooling system Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96)
- Remove Air Cleaner Assembly -Air Cleaner Assembly Replacement
|

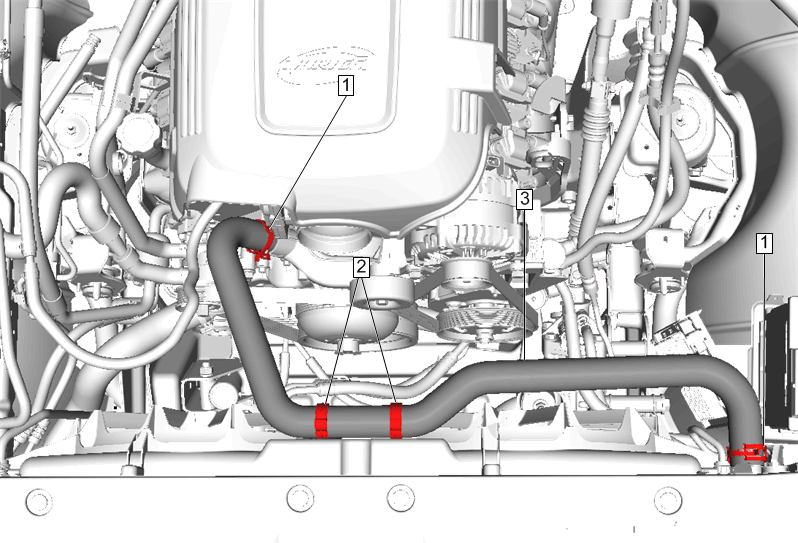

| 1 |
Radiator Inlet Hose Clamp [2x]
Hose Clamp Replacement Guidelines - Spring Type |
| 2 |
Radiator Inlet Hose Retainer [2x] |
| 3 |
Radiator Inlet Hose Procedures
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96)
- Inspect the cooing system for leaks.
|
