Engine Coolant Air Bleed Pipe Replacement (L96)

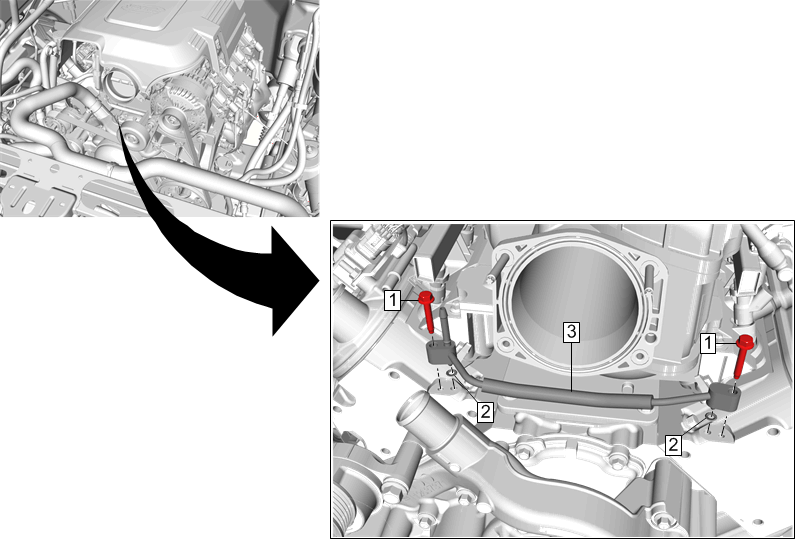

Fig 1: Engine Coolant Air Bleed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Disconnect Radiator Surge Tank Overflow Hose @Engine Coolant Air Bleed Pipe Radiator Surge Tank Overflow Hose Replacement (L96)
1	Engine Coolant Air Bleed Pipe Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  12 N.m (106 lb in)
2	Engine Coolant Air Bleed Pipe O-Ring [2x] Procedure  Install a NEW O-ring seal.
3	Engine Coolant Air Bleed Pipe
