Rear Seat Heater Control Module Replacement

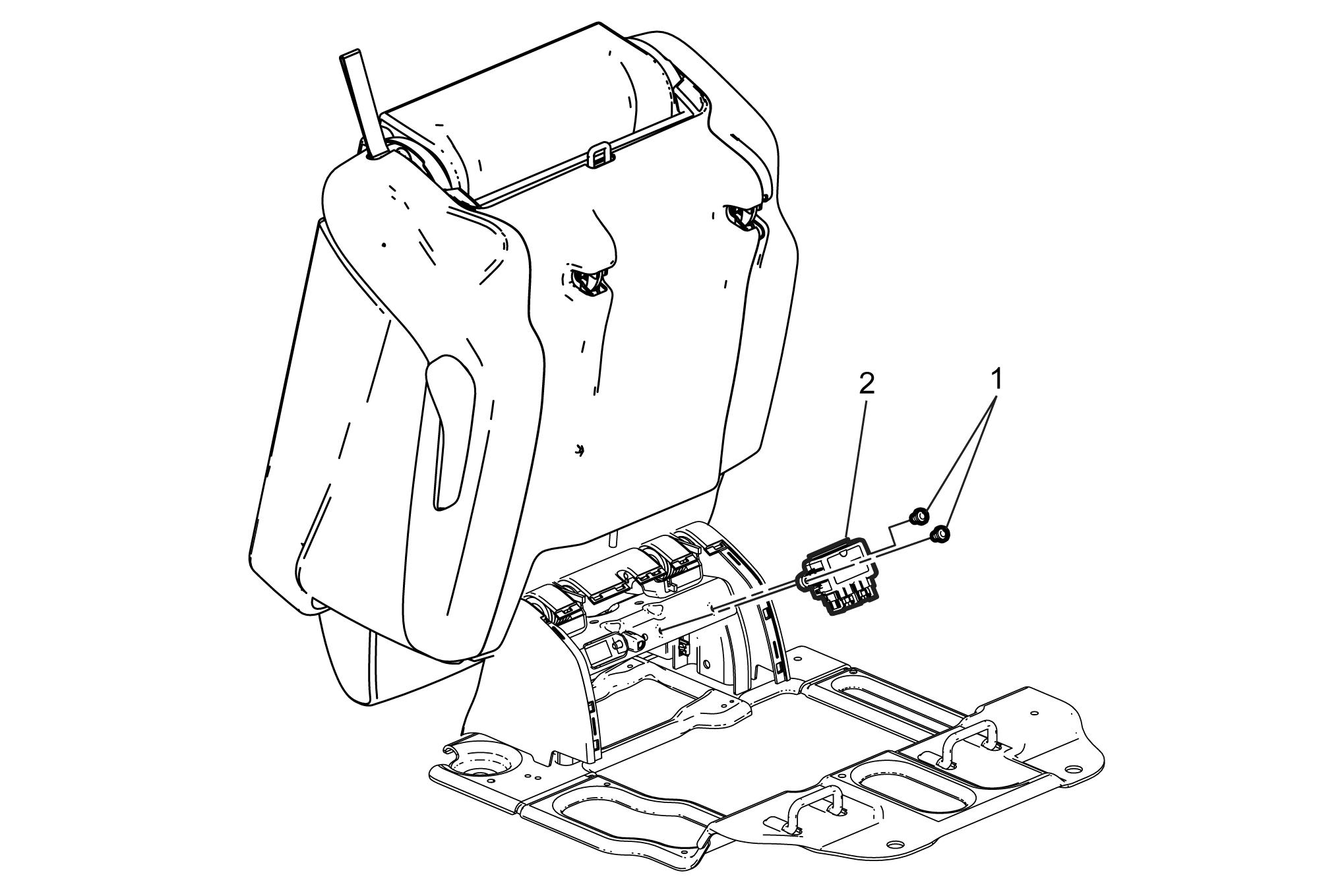

Fig 1: Rear Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear seat riser opening finish cover. Refer to Rear Seat Riser Opening Finish Cover Replacement .
1	Rear Seat Heater Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Rear Seat Heater Control Module Procedure  Disconnect the electrical connectors.
