Rear Seat Riser Opening Finish Cover Replacement

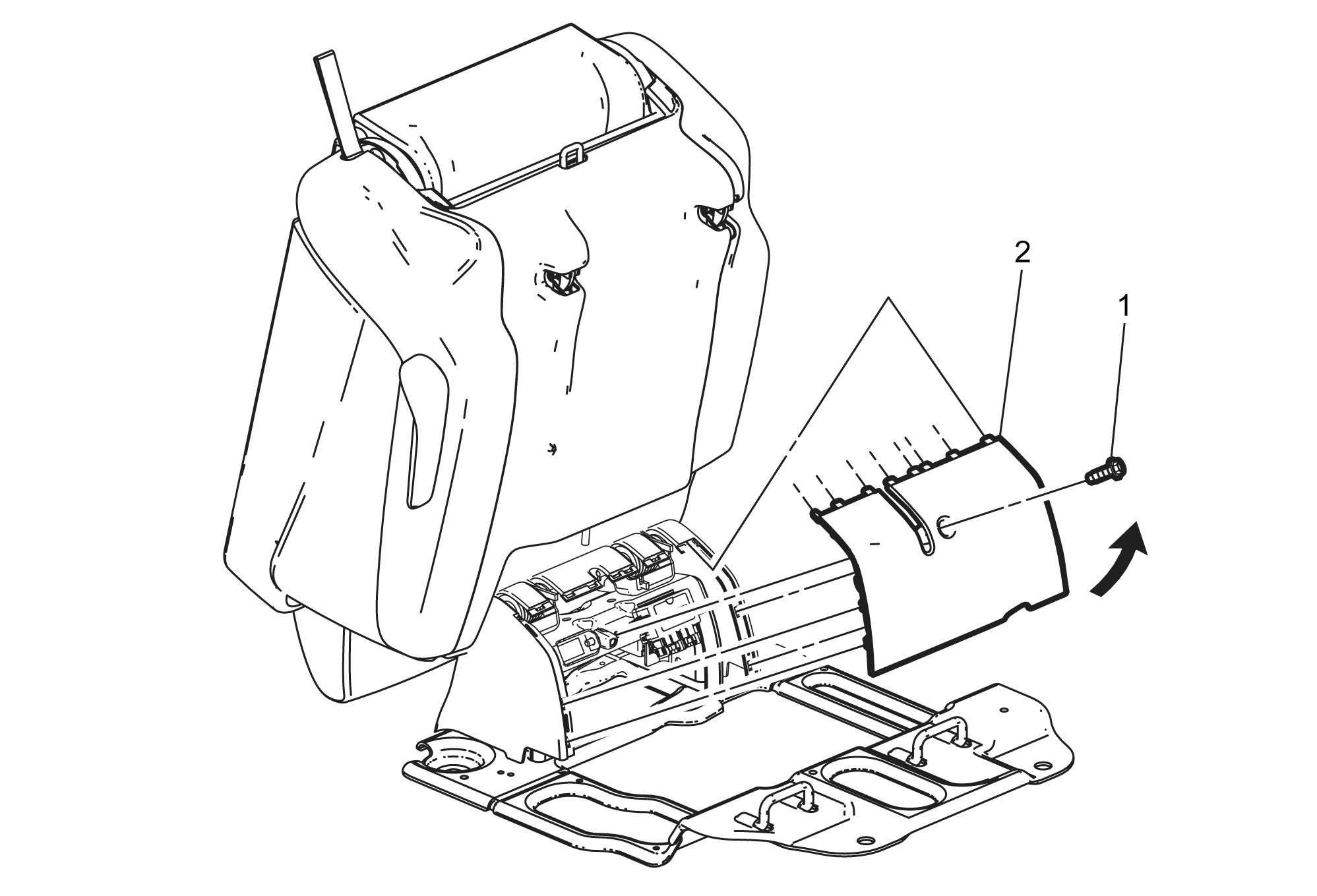

Fig 1: Rear Seat Riser Opening Finish Cover
GM3638998Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Riser Opening Finish Cover Fastener
CAUTION:

Refer to Fastener Caution .


Procedure
Release the rear seat latch to fold up the seat and gain access to the finish cover fastener.
Tighten
2 N.m (18 lb in)
2 Rear Seat Cushion Trim Panel
