Front Seat Belt Anchor Plate Tensioner Cover Replacement

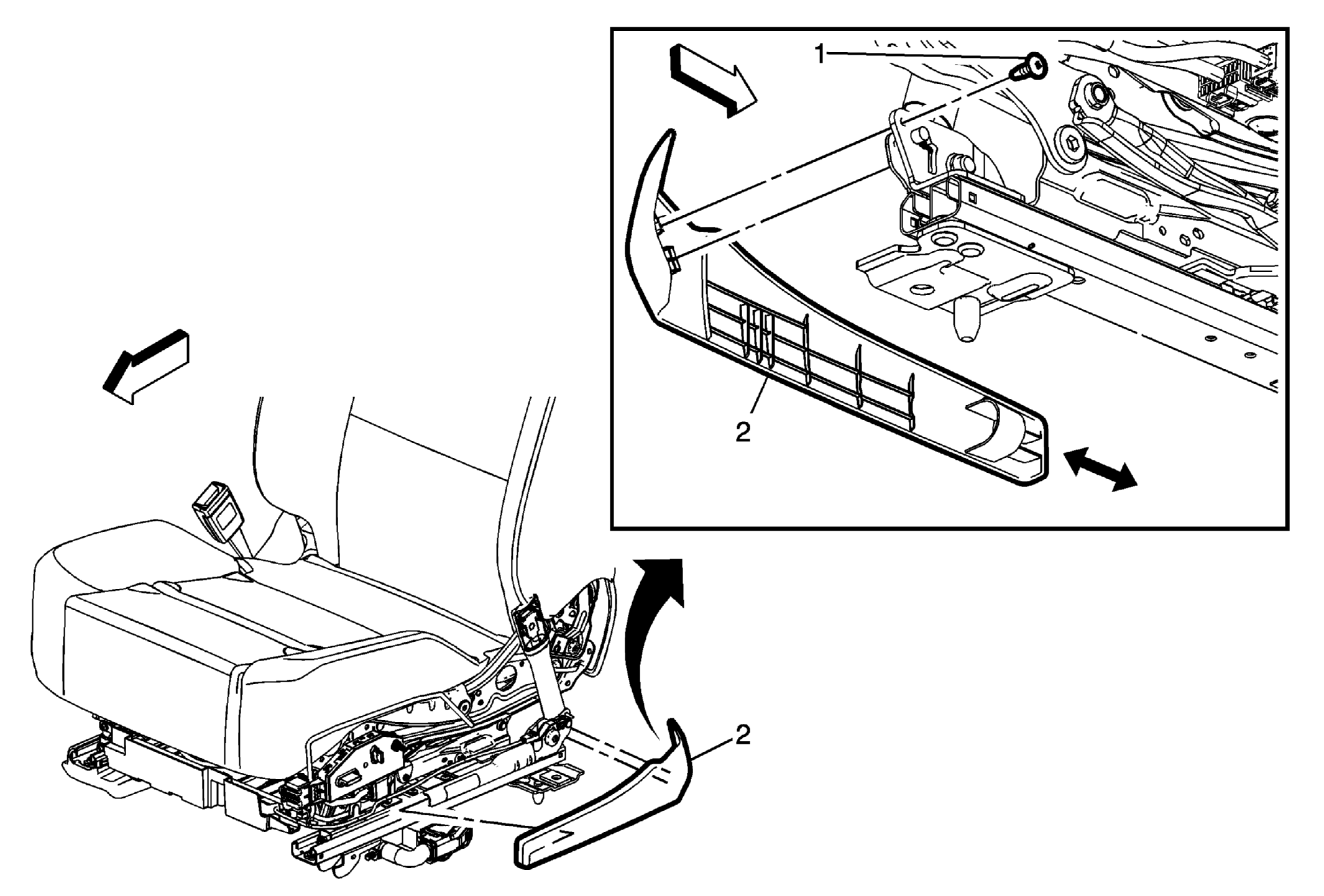

Fig 1: Front Seat Belt Anchor Plate Tensioner Cover
GM3270745Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement (8-Way Power) Front Seat Cushion Outer Finish Cover Replacement (2-Way Manual) Front Seat Cushion Outer Finish Cover Replacement (22-Way Power) .
1 Front Seat Belt Anchor Plate Tensioner Cover Screw
CAUTION:

Refer to Fastener Caution .


Procedure
Raise the seat to the highest seat position.
2 Front Seat Belt Anchor Plate Tensioner Cover

Procedure

  1. Disengage the seat tensioner wiring harness from the cover.
  2. Release the rear tab of the cover from the seat track.
  3. Slide the finish cover forward off the tensioner rod.
