Front Fender Paint Protector Replacement

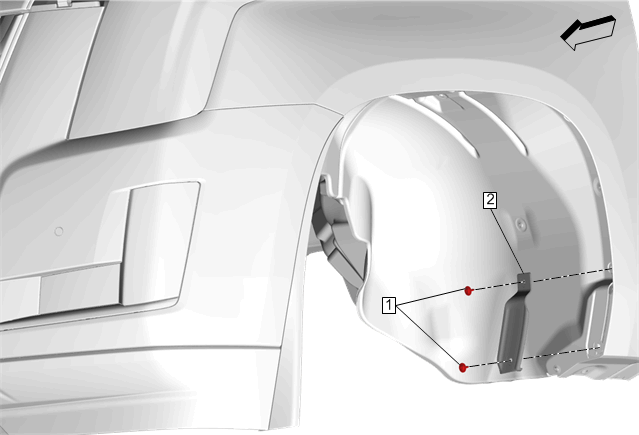

Fig 1: Front Fender Paint Protector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Front Fender Paint Protector Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Fender Paint Protector
