Instrument Panel Cluster Trim Plate Replacement (Cadillac)

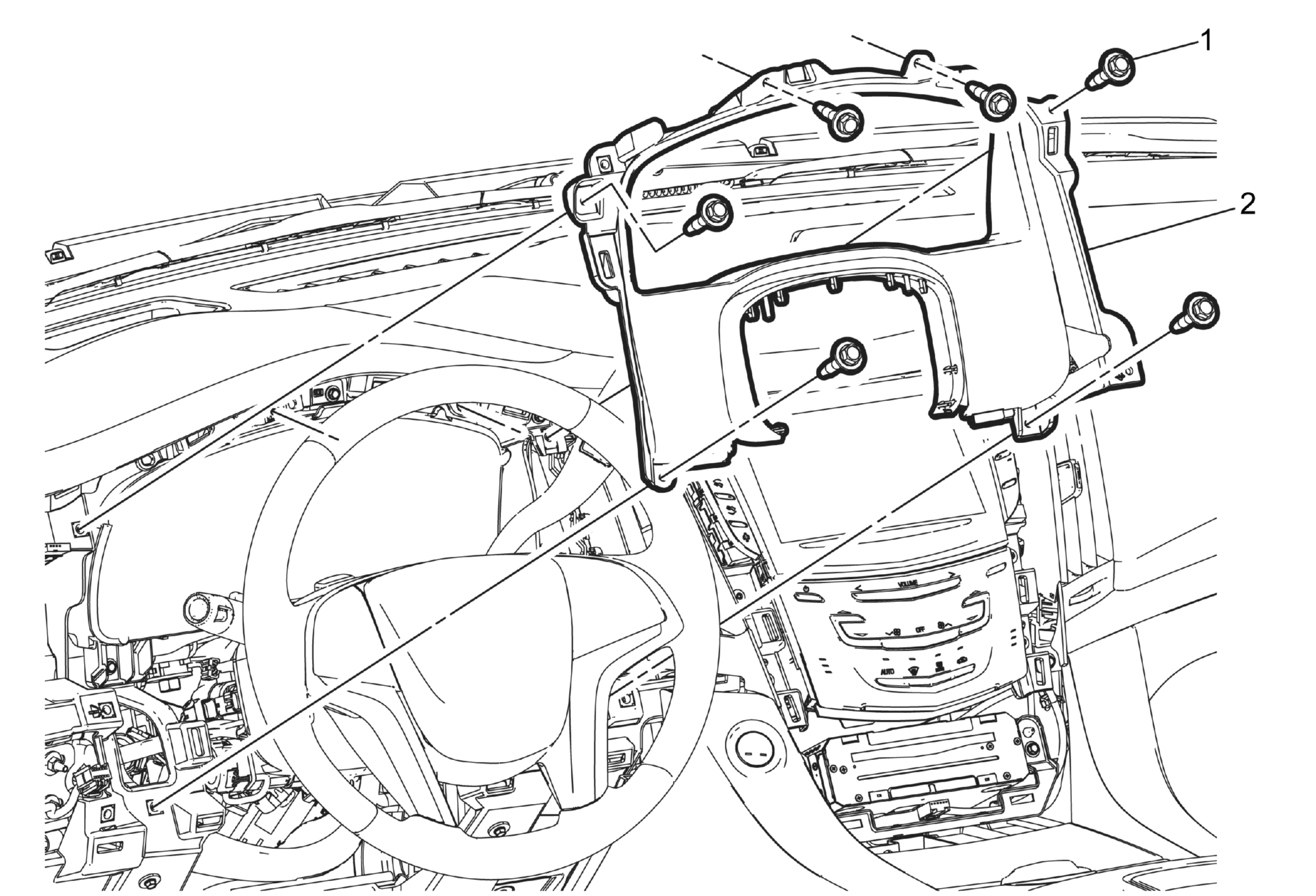

Fig 1: Instrument Panel Cluster Trim Plate (Cadillac)
GM3630646Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement (Cadillac) .
  2. Remove the left instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Left Side (Cadillac) .
  3. Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement (Cadillac) .
1 Instrument Panel Cluster Trim Plate Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Cluster Trim Plate

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim plate to the instrument panel carrier.
  2. Use a flat bladed plastic trim tool in order to release the tabs securing the closeout cover to the steering column shroud.
