Instrument Panel Upper Trim Panel Replacement - Left Side (Cadillac)

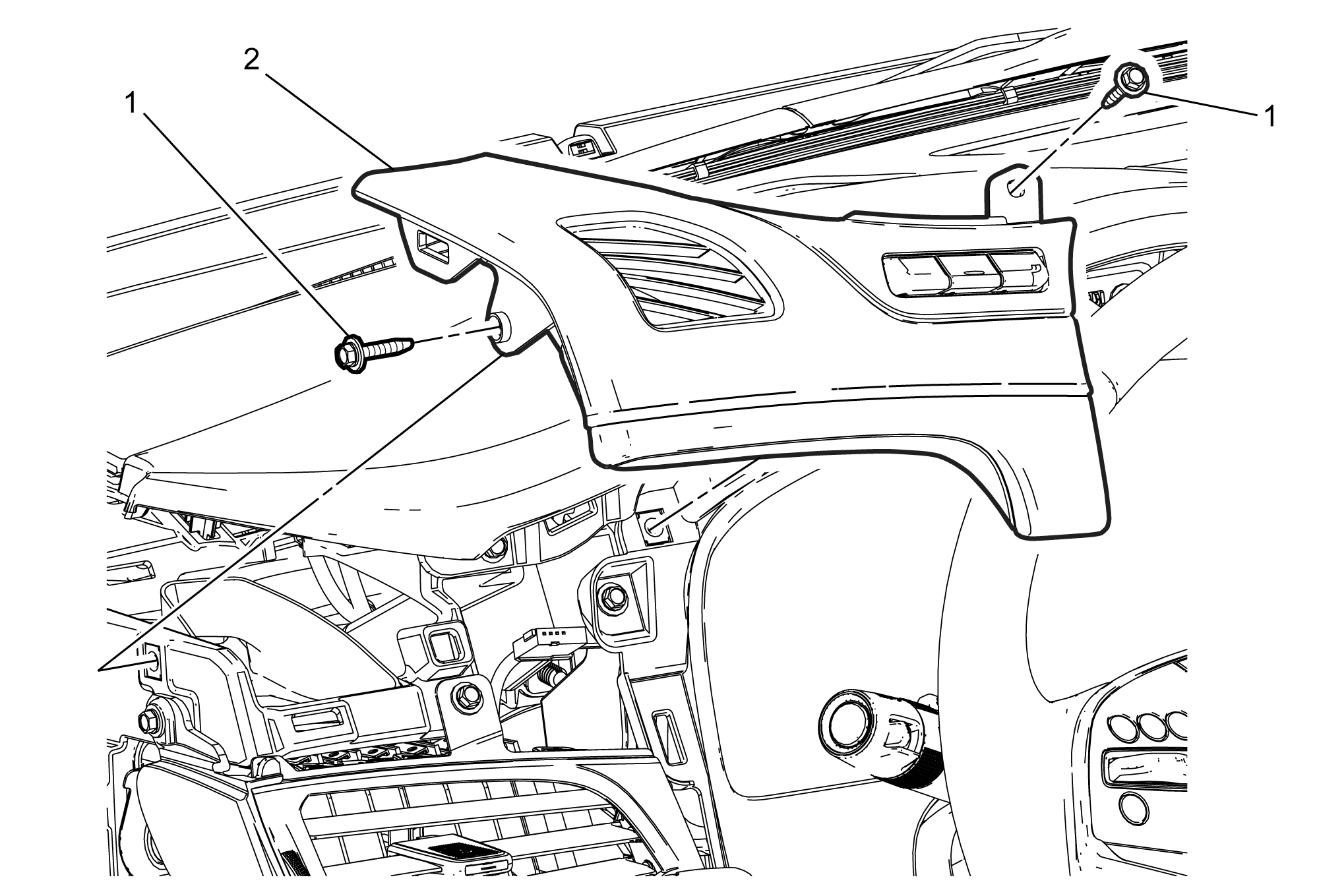

Fig 1: Instrument Panel Upper Trim Panel - Left Side (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel cluster upper trim plate. Refer to Instrument Panel Cluster Upper Trim Plate Replacement (Cadillac) . Remove the left instrument panel fuse block access hole cover. Refer to Instrument Panel Fuse Block Access Hole Cover Replacement (Cadillac)
1	Instrument Panel Upper Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Upper Trim Panel Procedures Use a flat bladed plastic trim tool in order to release the retainer clips securing the panel to the instrument panel carrier. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel cluster upper trim plate. Refer to Instrument Panel Cluster Upper Trim Plate Replacement (Cadillac) .
Remove the left instrument panel fuse block access hole cover. Refer to Instrument Panel Fuse Block Access Hole Cover Replacement (Cadillac)

Instrument Panel Upper Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Upper Trim Panel

Procedures

Use a flat bladed plastic trim tool in order to release the retainer clips securing the panel to the instrument panel carrier.
Disconnect the electrical connector.
Transfer components as necessary.
