Windshield Washer Pump Hose Replacement (Chevrolet/GMC)

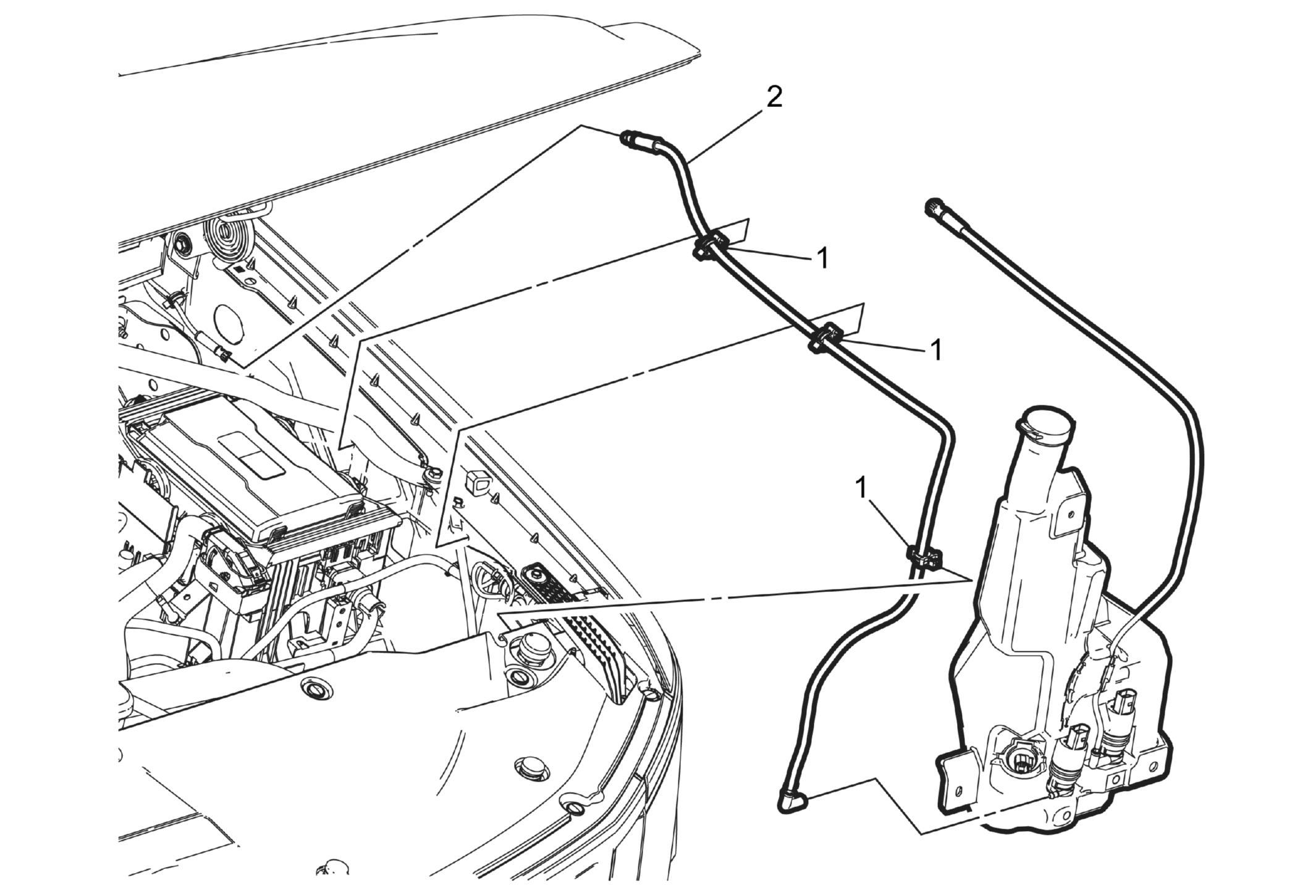

Fig 1: Windshield Washer Pump Hose (Chevrolet/GMC)
GM3635578Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Chevrolet/GMC) .
  2. Disconnect the windshield washer pump hose connection from the windshield washer nozzle hose. Refer to Windshield Washer Nozzle Hose Replacement .
1 Windshield Washer Pump Hose Retainer (Qty: 3)
Procedure
Open retainers to remove the windshield washer pump hose.
2 Windshield Washer Pump Hose
Procedure
Remove the windshield washer pump hose from the engine compartment.
