Windshield Washer Nozzle Hose Replacement

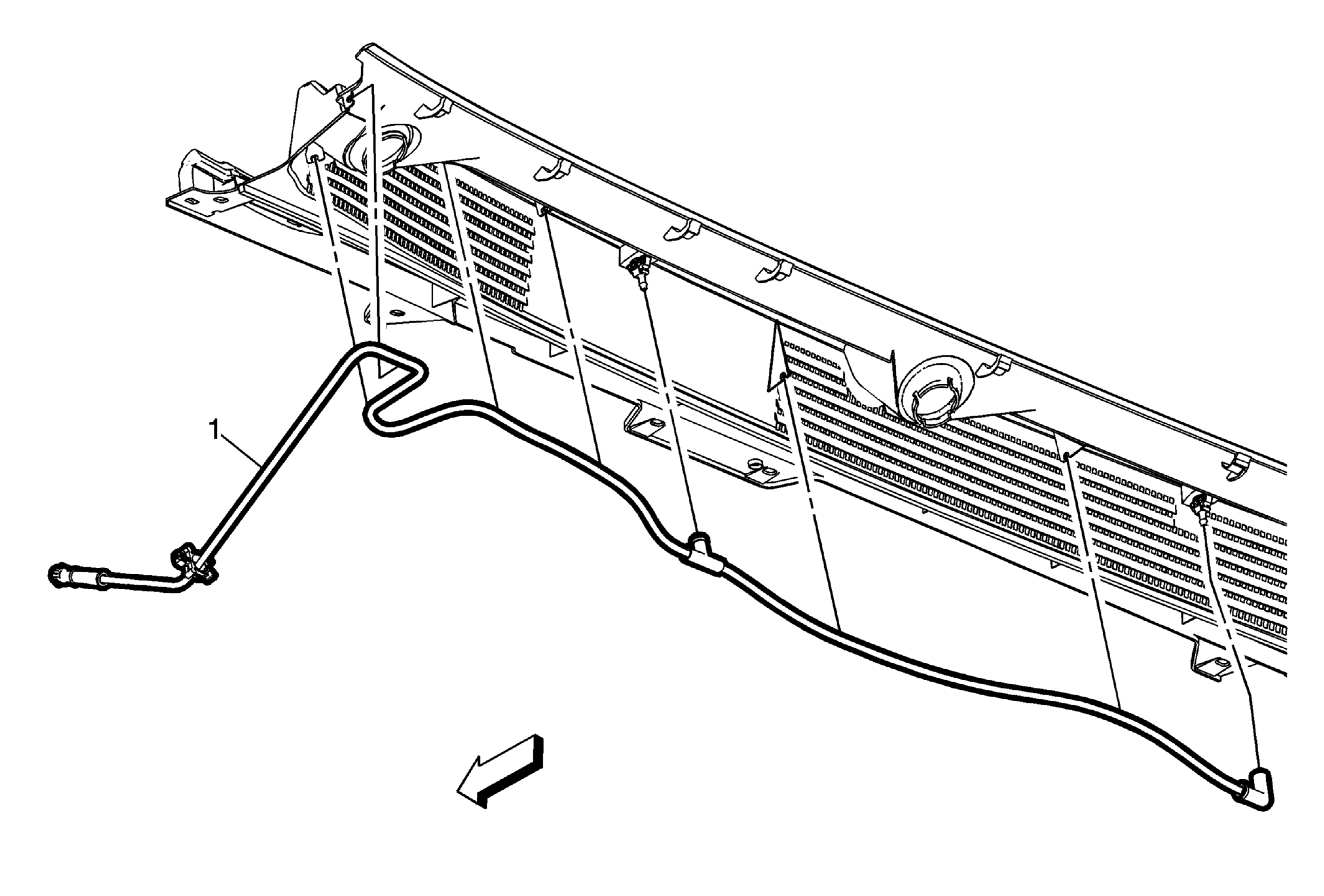

Fig 1: Windshield Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Chevrolet/GMC) Air Inlet Grille Panel Replacement (Cadillac) .
1	Windshield Washer Nozzle Procedure Disconnect the windshield washer hose at both windshield washer nozzle spouts. Remove the windshield washer hose from the air inlet grille panel retainers.

Callout

Component Name

Windshield Washer Nozzle

Procedure
