Floor Front Air Outlet Duct Replacement - Left Side

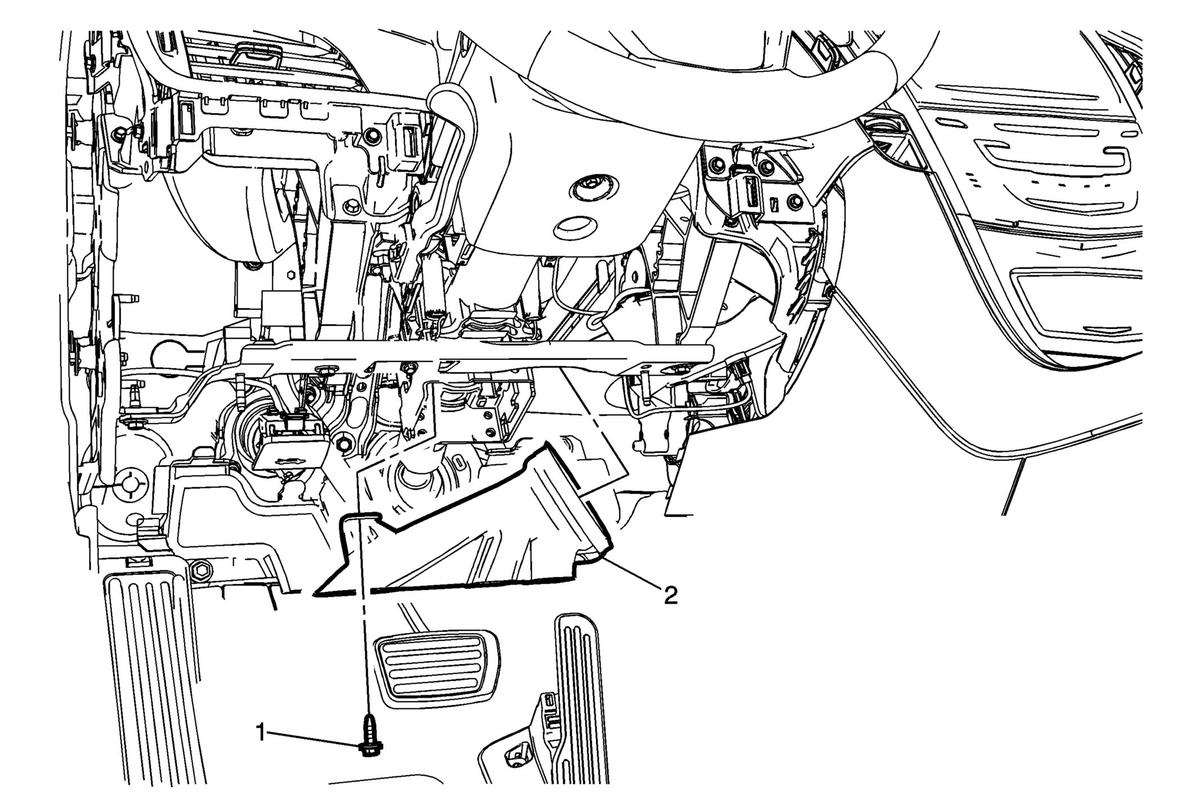

GM2811126Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Knee Bolster Replacement
1 Floor Front Air Outlet Duct Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Floor Front Air Outlet Duct - Left Side
