Instrument Cluster Replacement

Courtesy of GENERAL MOTORS COMPANY

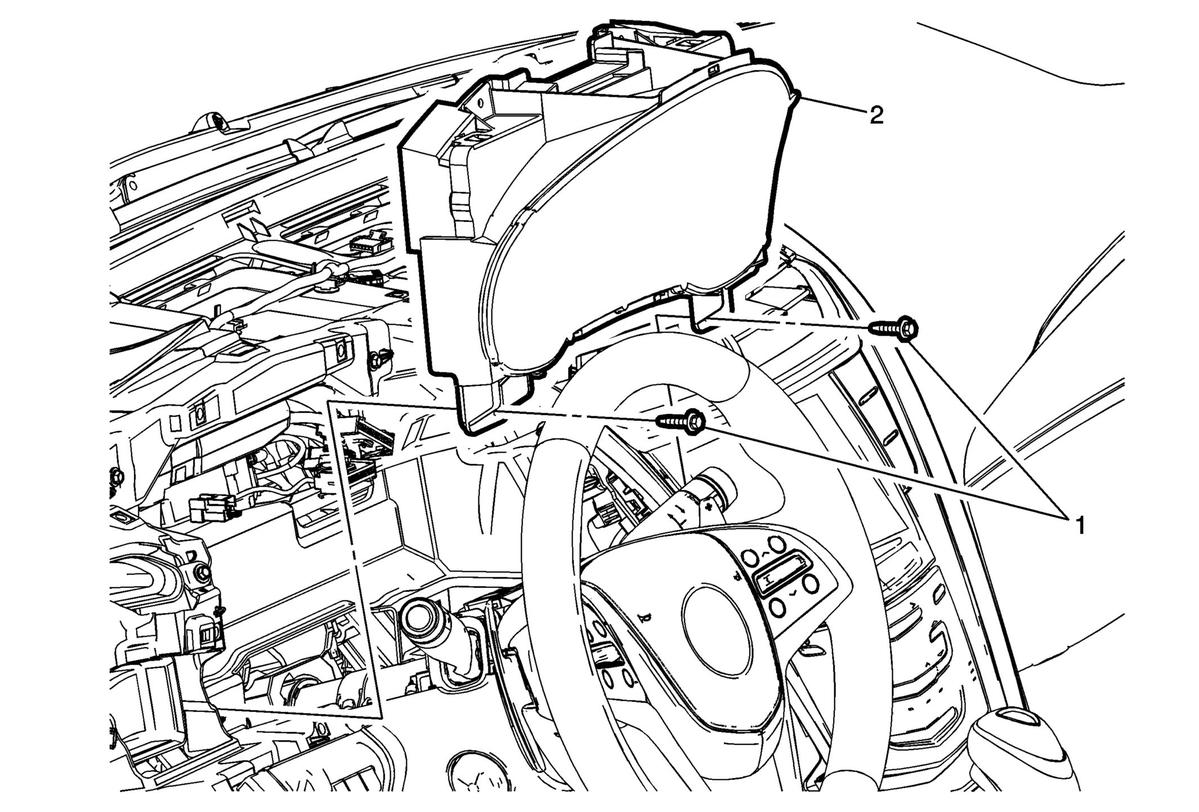

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate applique. Refer to Instrument Panel Cluster Trim Plate Applique Replacement .
1	Instrument Cluster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate applique. Refer to Instrument Panel Cluster Trim Plate Applique Replacement .

Instrument Cluster Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

Procedure
