Front Tire Front Air Deflector Replacement

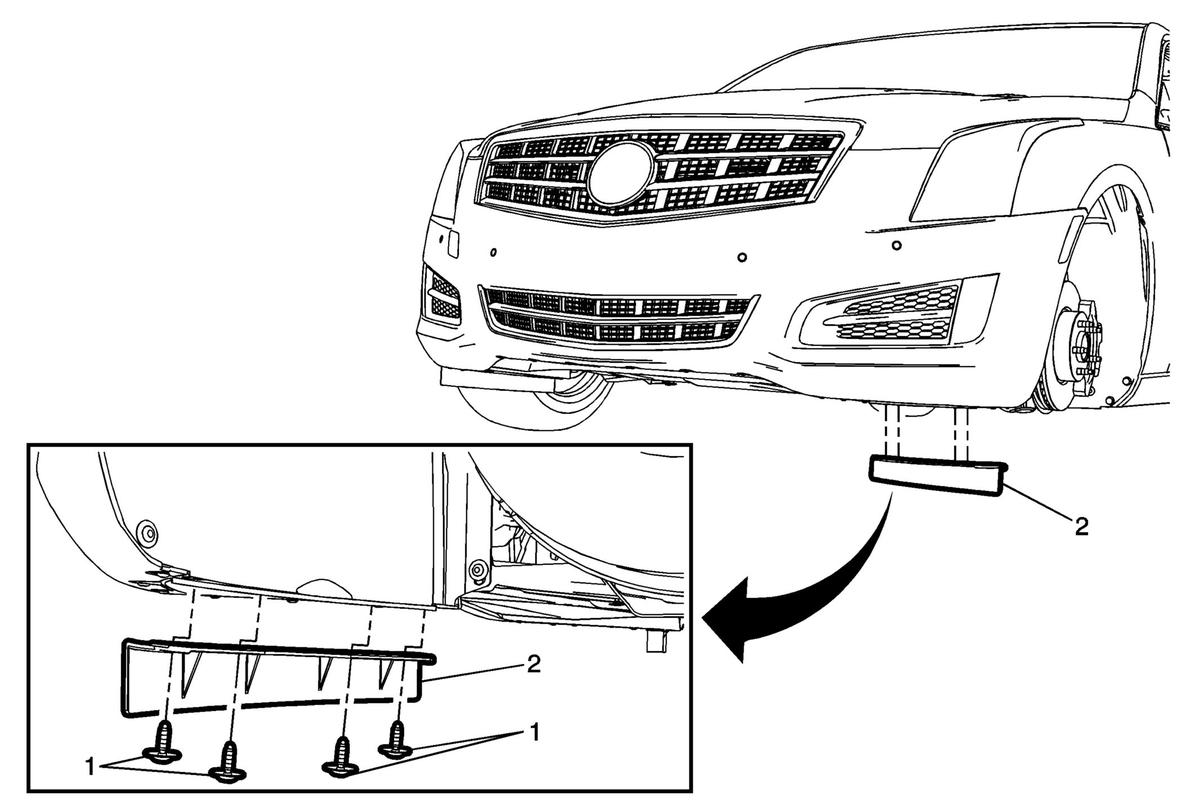

GM2807031
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (CTS)Lifting and Jacking the Vehicle (CTS-V) .
1 Front Tire Front Air Deflector Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Tire Front Air Deflector
