Preliminary Procedures
- Lower the rear compartment rear window lower trim to access the retainers through the rear compartment. Refer to Rear Compartment Rear Window Lower Trim Replacement .
- Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .
|

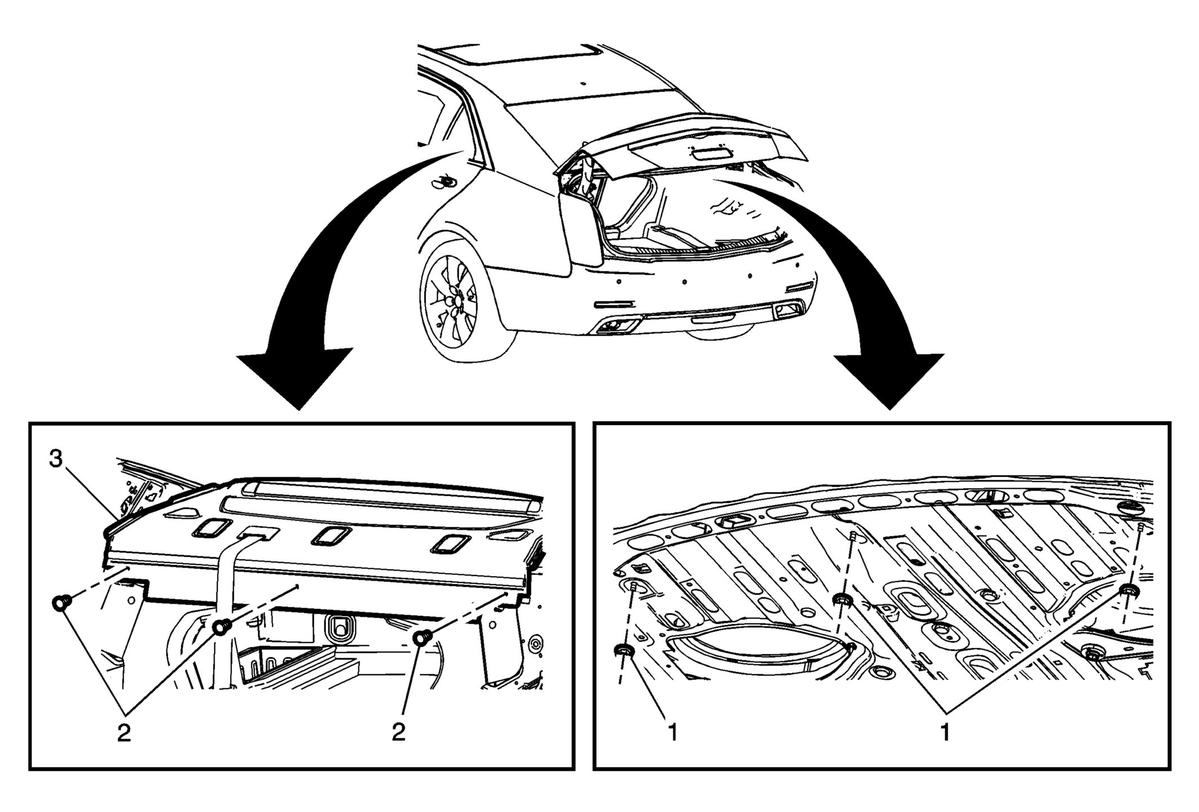

| 1 |
Rear Window Panel Trim Fastener (Qty: 3)
Tighten
9 N.m (80 lb in) |
| 2 |
Rear Window Panel Trim Push-In Fastener (Qty: 3)
Procedure
Fold down the rear seats to access the retainers. |
| 3 |
Rear Window Panel Trim Assembly Procedure
- With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system.
- Route the rear seat belt bracket cover and center seat belt through the rear window trim panel opening.
- Disconnect the electrical connector.
- When replacing the rear window panel trim assembly, transfer all necessary components.
|
