Rear Side Door Window Garnish Molding Replacement

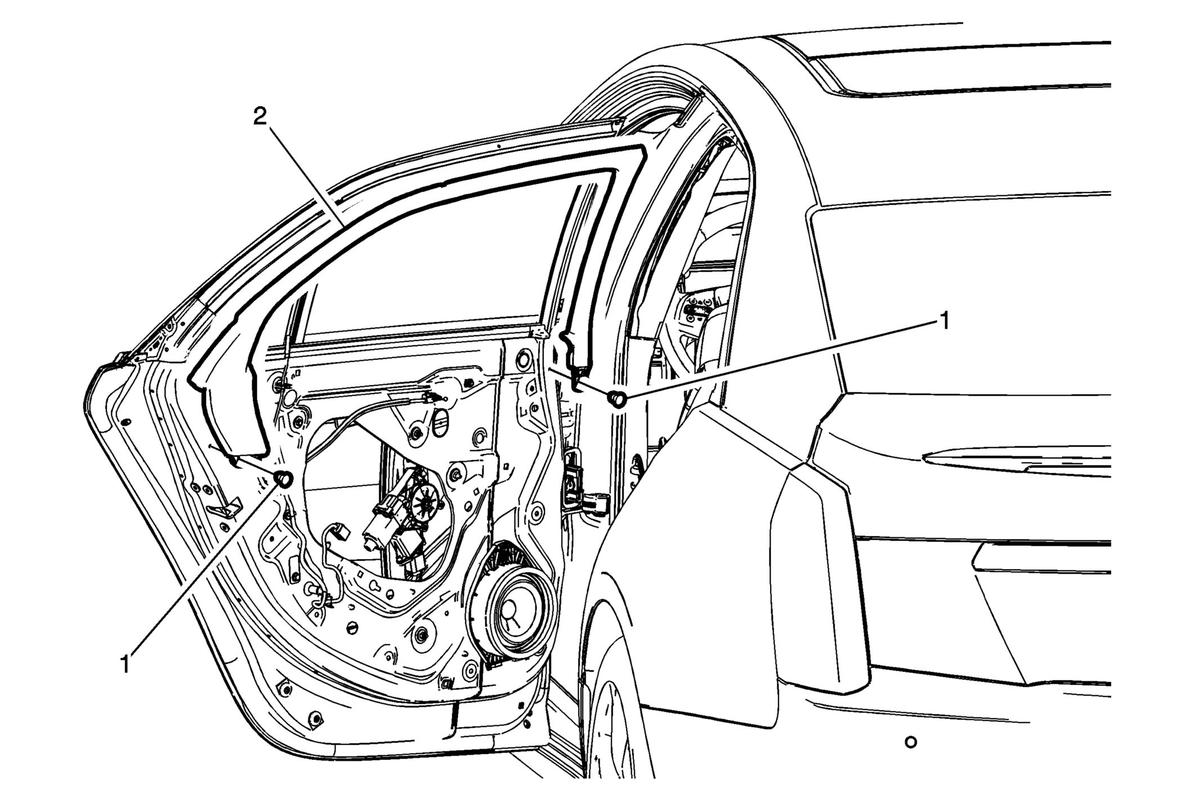

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door window inside sunshade. Refer to Rear Side Door Window Inside Sunshade Replacement . Release and remove the rear shade hook from the door frame using a flat plastic trim tool if equipped with sunshade DE8. If equipped with sunshade DE8, remove the torx retaining screw from the center shade retainer and remove the center shade retainer from the door frame using a flat plastic trim tool.
1	Rear Side Door Window Garnish Molding Retainer (Qty: 2) Procedure Use a door trim panel removal tool or equivalent to aid in the removal of the retainer.
2	Rear Side Door Window Garnish Molding Assembly Procedure Pull outward starting at the front and moving slowly rearward to remove the molding.

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the rear side door window inside sunshade. Refer to Rear Side Door Window Inside Sunshade Replacement .
Release and remove the rear shade hook from the door frame using a flat plastic trim tool if equipped with sunshade DE8.
If equipped with sunshade DE8, remove the torx retaining screw from the center shade retainer and remove the center shade retainer from the door frame using a flat plastic trim tool.

Rear Side Door Window Garnish Molding Retainer (Qty: 2)
Procedure
Use a door trim panel removal tool or equivalent to aid in the removal of the retainer.

Rear Side Door Window Garnish Molding Assembly
Procedure
Pull outward starting at the front and moving slowly rearward to remove the molding.
