Instrument Panel Compartment Replacement

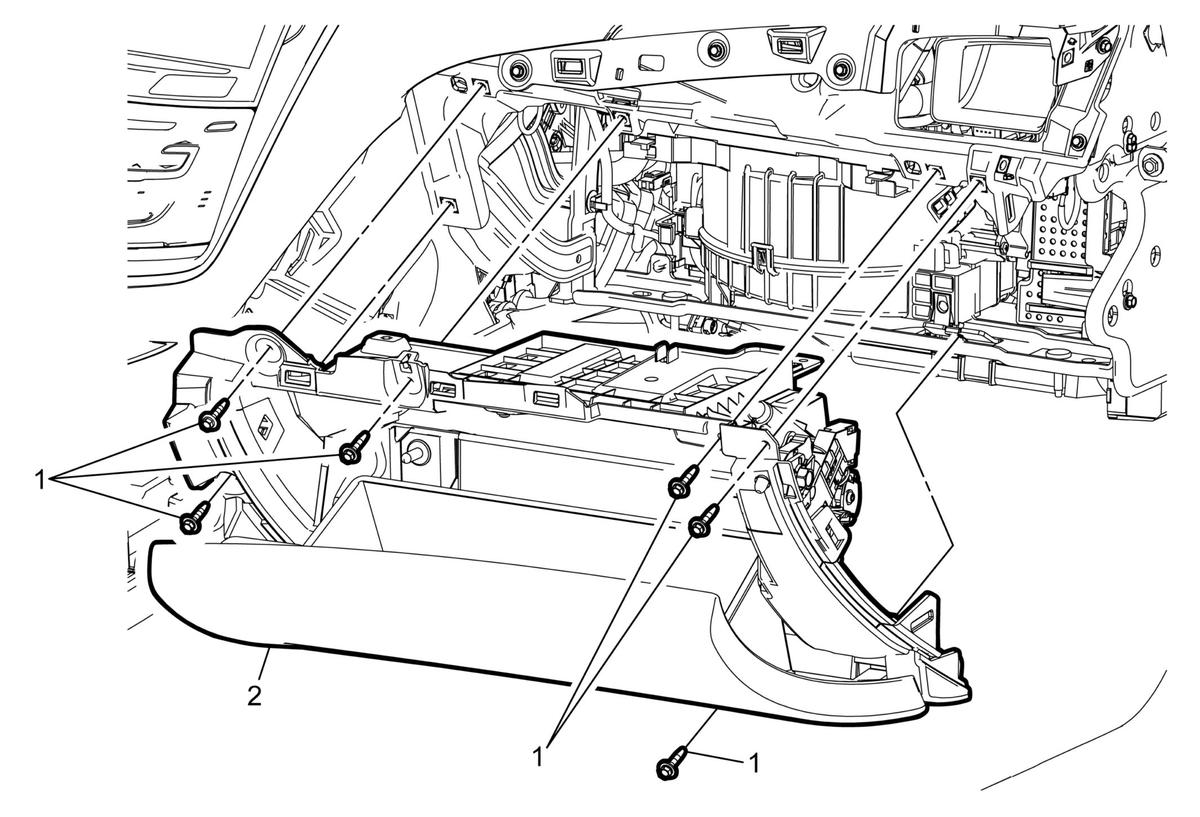

GM3453956
Callout Component Name

Preliminary Procedure

  1. Remove the passenger instrument panel lower airbag. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
  2. Remove the right instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement - Right Side .
  3. Remove the right instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement (Right Side) Instrument Panel Lower Center Trim Panel Replacement (Left Side)
  4. Remove the instrument panel compartment shelf. Refer to Instrument Panel Compartment Shelf Replacement .
1 Instrument Panel Compartment Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Compartment

Procedures

  1. Disconnect all electrical connectors.
  2. Transfer components as necessary.
