Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

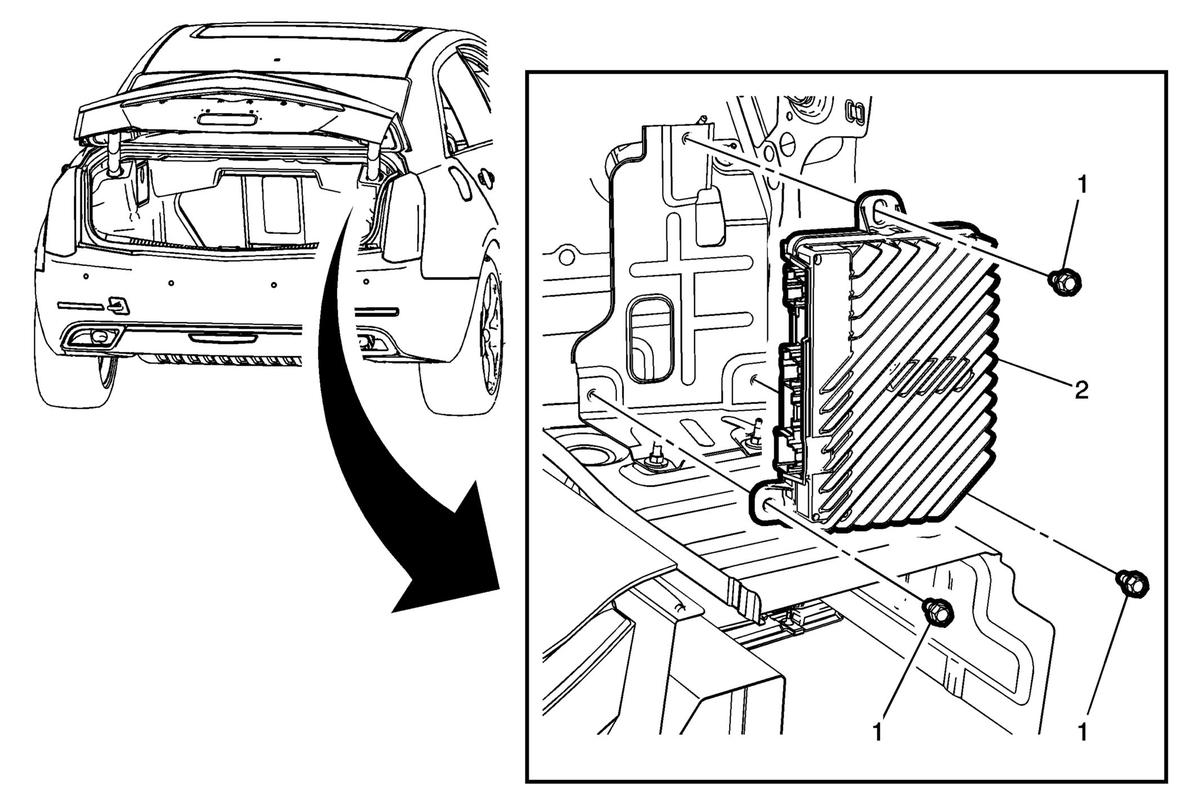

Callout	Component Name
Preliminary Procedure Reposition the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .
1	Radio Speaker Amplifier Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Reposition the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .

Radio Speaker Amplifier Fasteners (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Speaker Amplifier

Procedure
