Radio Replacement (IOS, IOT)

Courtesy of GENERAL MOTORS COMPANY

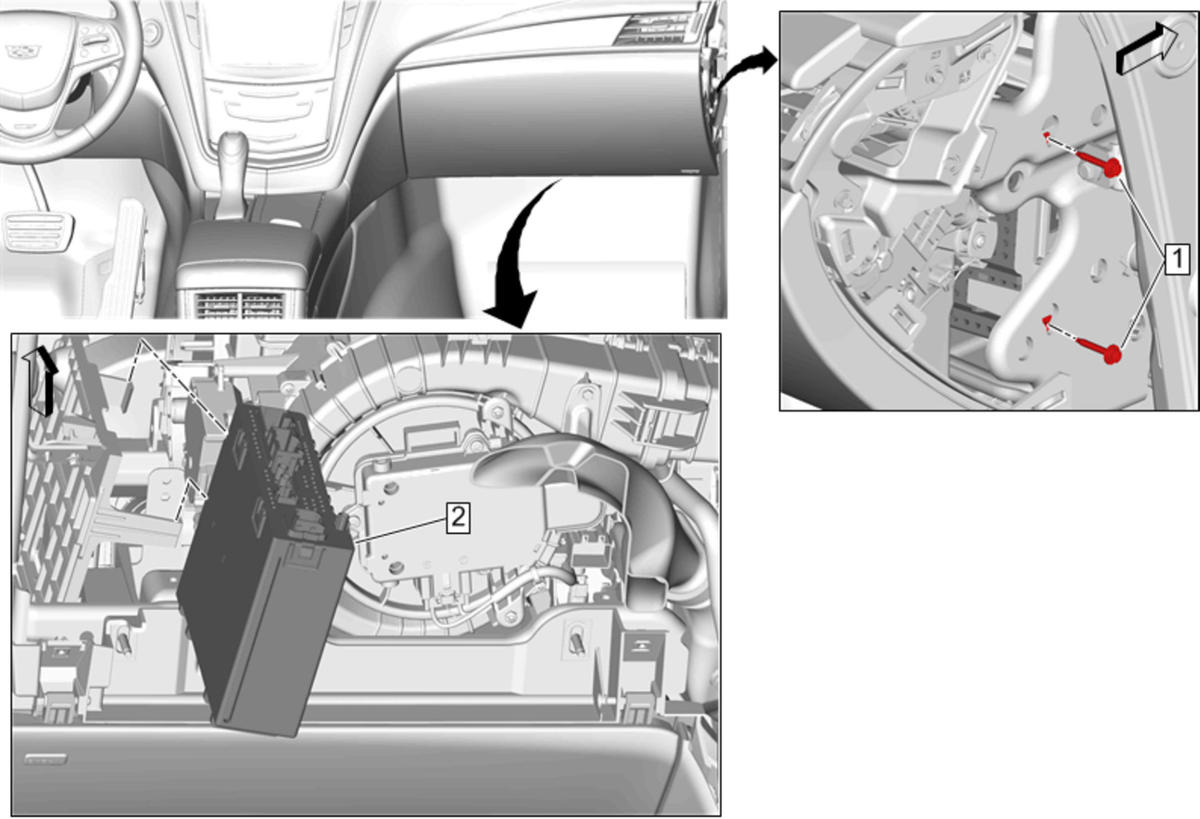

Callout	Component Name
Preliminary Procedures Before removing the radio, perform the radio reset. Radio Reset Instrument Panel Lower Trim Panel Insulator Replacement - Right Side Instrument Panel Outer Trim Cover Replacement
1	Radio Bracket Fastener [2x] CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Radio Procedure Disconnect the electrical connectors. Reposition the front floor panel carpet as necessary. Slide module downward to release from bracket. After installing the radio, perform the radio reset. Radio Reset

Callout

Component Name

Preliminary Procedures

Radio Bracket Fastener [2x]

CAUTION:

Tighten
2.5N.m (22 lb in)

Radio

Procedure
