Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
| Callout | Component Name |
|---|---|
| Preliminary Procedure Heater and Air Conditioning Remote Control Replacement
NOTE:
When removing the instrument panel lower trim panel insulator for any reason, it is required that the connector to the HVAC module be disconnected. If the vehicle battery has NOT been disconnected, when reinstalling / reconnecting the module, the BROWN J2 connector must be connected last. Once all the parts are all in place, check and clear all DTCs in the HVAC module. |
|

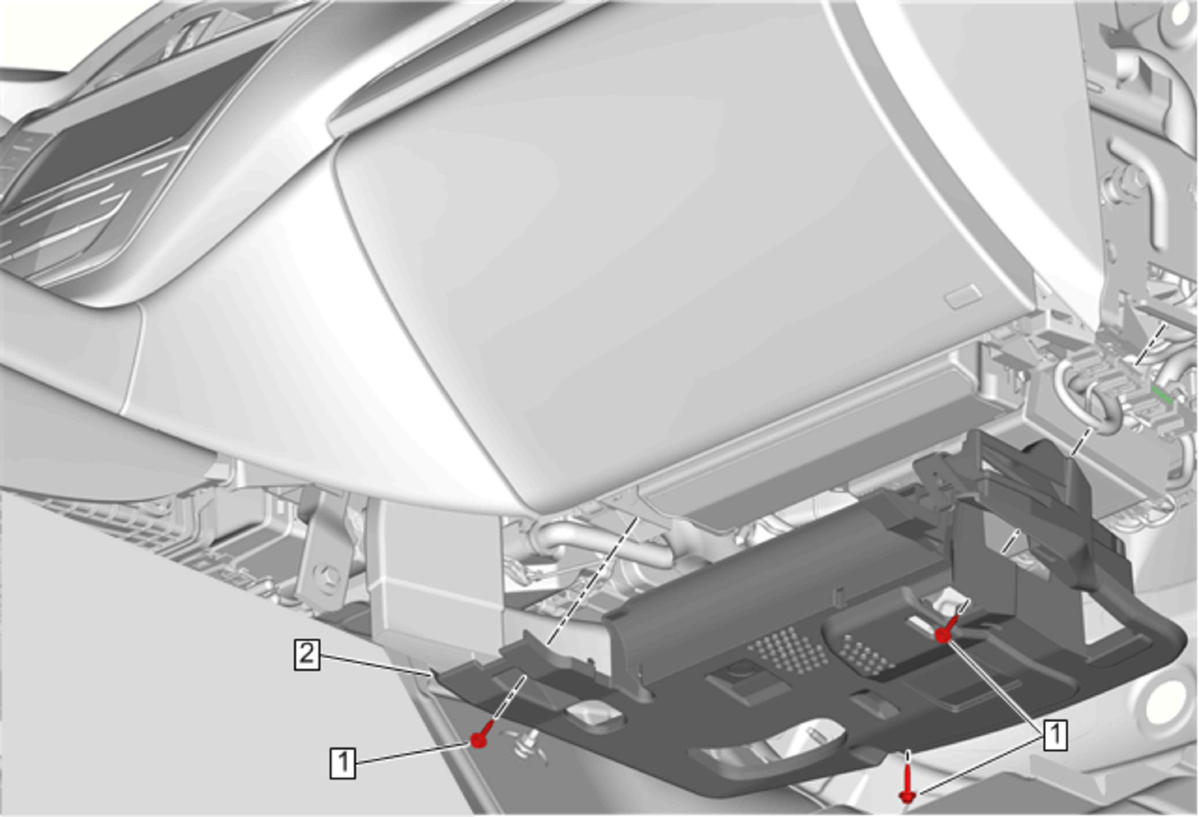

| 1 | Instrument Panel Insulator Bolt [3x]
CAUTION:
Refer to Fastener Caution . Procedure Reposition the front floor panel carpet at the insulator panel to access the front fastener. Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Lower Trim Panel Insulator - Right Side Procedure
|
