Front View Camera Replacement (With UGN)

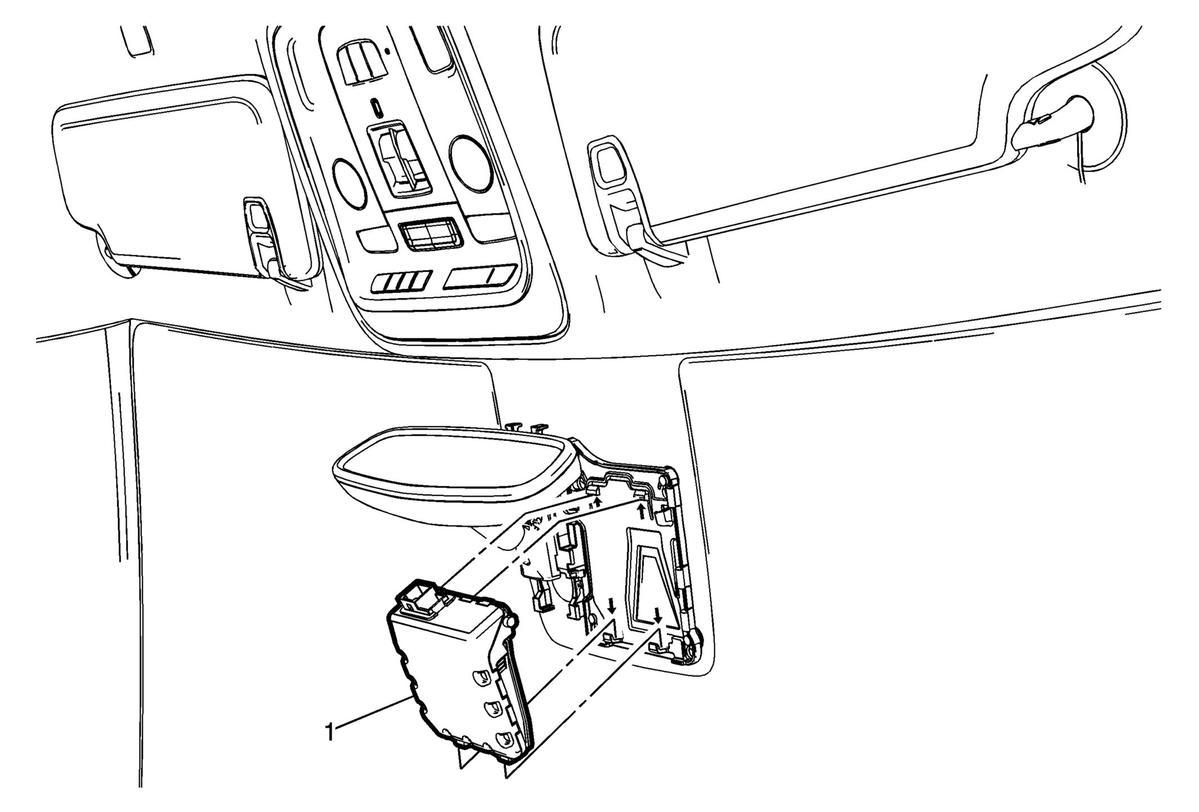

GM2965734

Callout

Component Name

Preliminary Procedure
Remove the windshield multifunction sensor mounting bracket cover Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU, UFL)Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UEU, UFL) .

1

Front View Camera

Procedure

Disconnect the electrical connector.
Release the retaining tab and slide front view camera towards the roof to release from multifunction relay module bracket.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
