Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU, UFL)

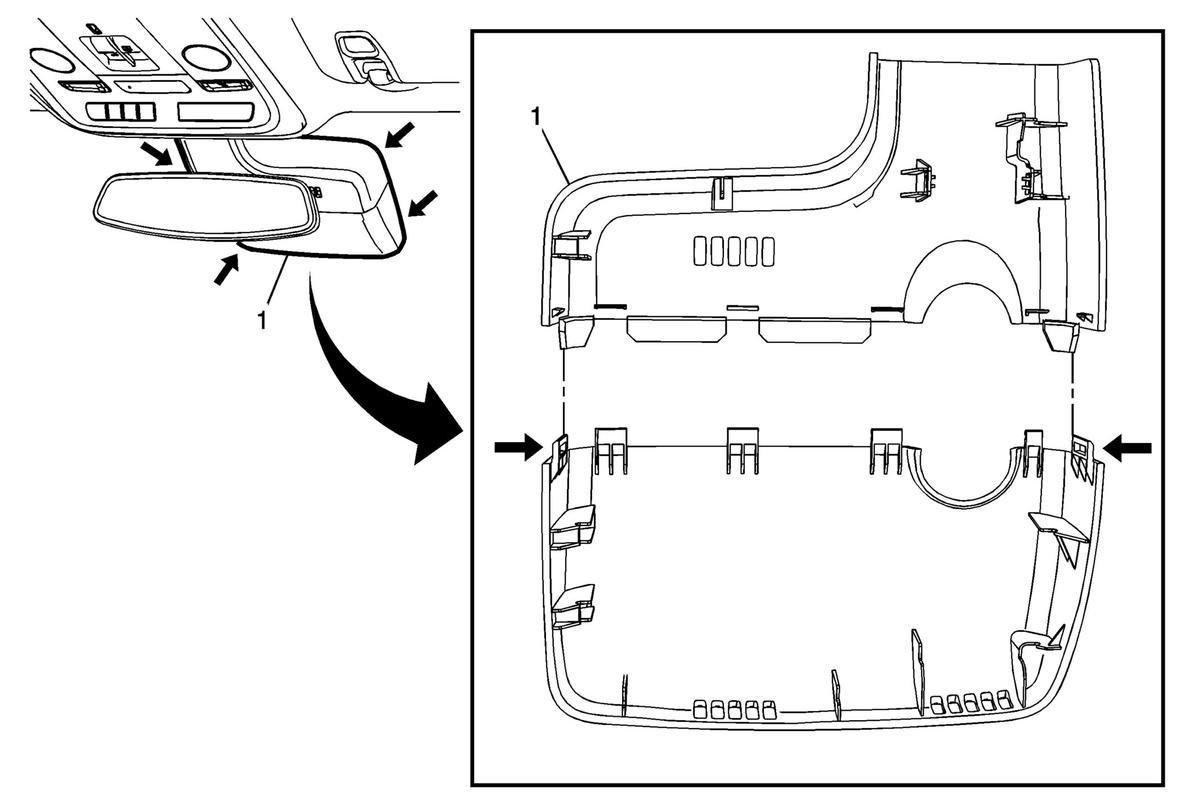

GM3501672

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Windshield Multifunction Sensor Mount Bracket Cover

Procedure

Disengage the cover from the sides of the bracket by lifting on the sides of the cover next to the glass surface.
With the cover assembly loose, disengage the locking tabs on each side to separate the top and bottom halves of the cover.
NOTE:
This is a blind operation: to unlock the top and bottom covers, flex the top cover at the locking tab outboard and flex the bottom cover at the tab inboard.
