Front Seat Cushion Cover and Pad Replacement (With W2E)

Courtesy of GENERAL MOTORS COMPANY

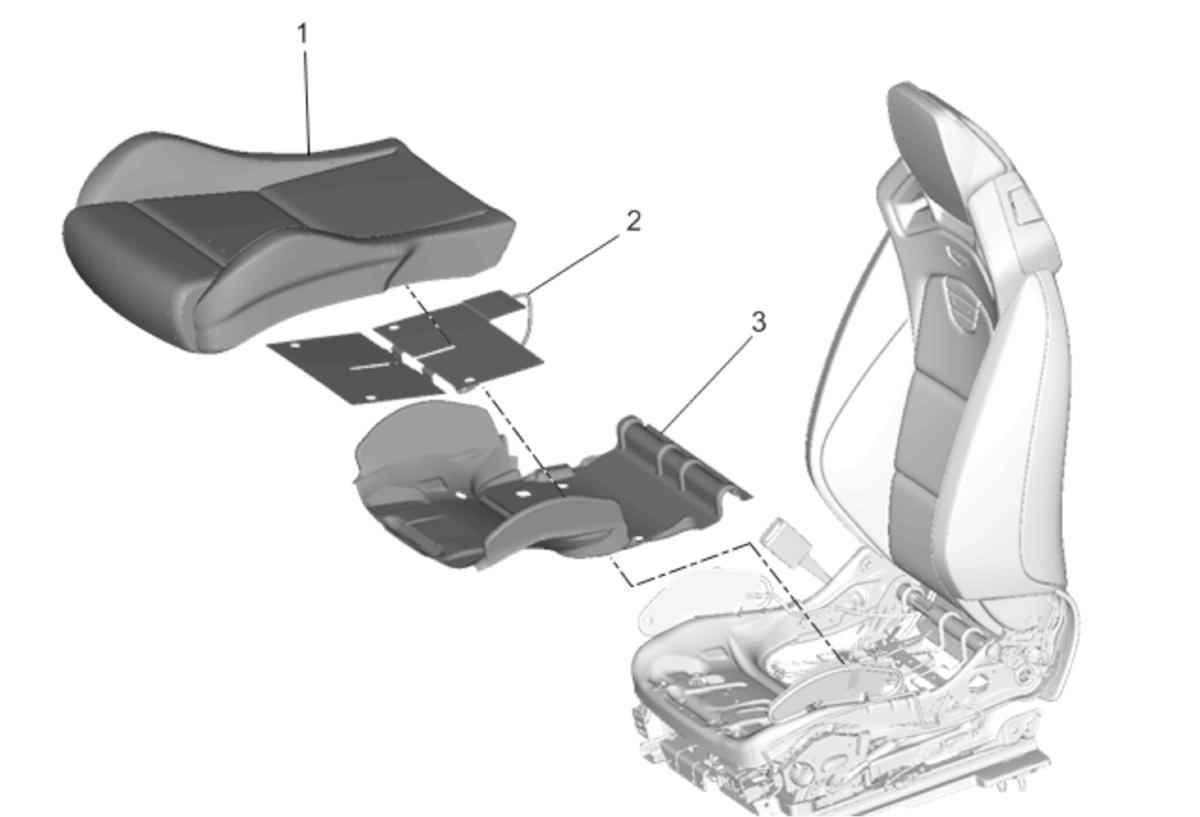

Callout	Component Name
WARNING: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. Preliminary Procedures Driver or Passenger Seat Inner Recliner Finish Cover Replacement Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Without W2E) Driver or Passenger Seat Cushion Outer Finish Panel Replacement (With W2E)
1	Front Seat Cushion Cover Procedure Disengage the J-channel retainers from the seat cushion frame. Disconnect electrical connectors, if equipped. Remove the seat cushion cover and pad from the seat cushion frame as an assembly.
2	Front Seat Cushion Heater { If equipped }
3	Front Seat Cushion Pad Procedure Control Module References for programming and setup information, if required. NOTE: The cushion cover and pad are serviced as a kit. None of the components are intended to be serviced separately.
