Driver or Passenger Seat Outer Adjuster Front Finish Cover Replacement (Rear)

Courtesy of GENERAL MOTORS COMPANY

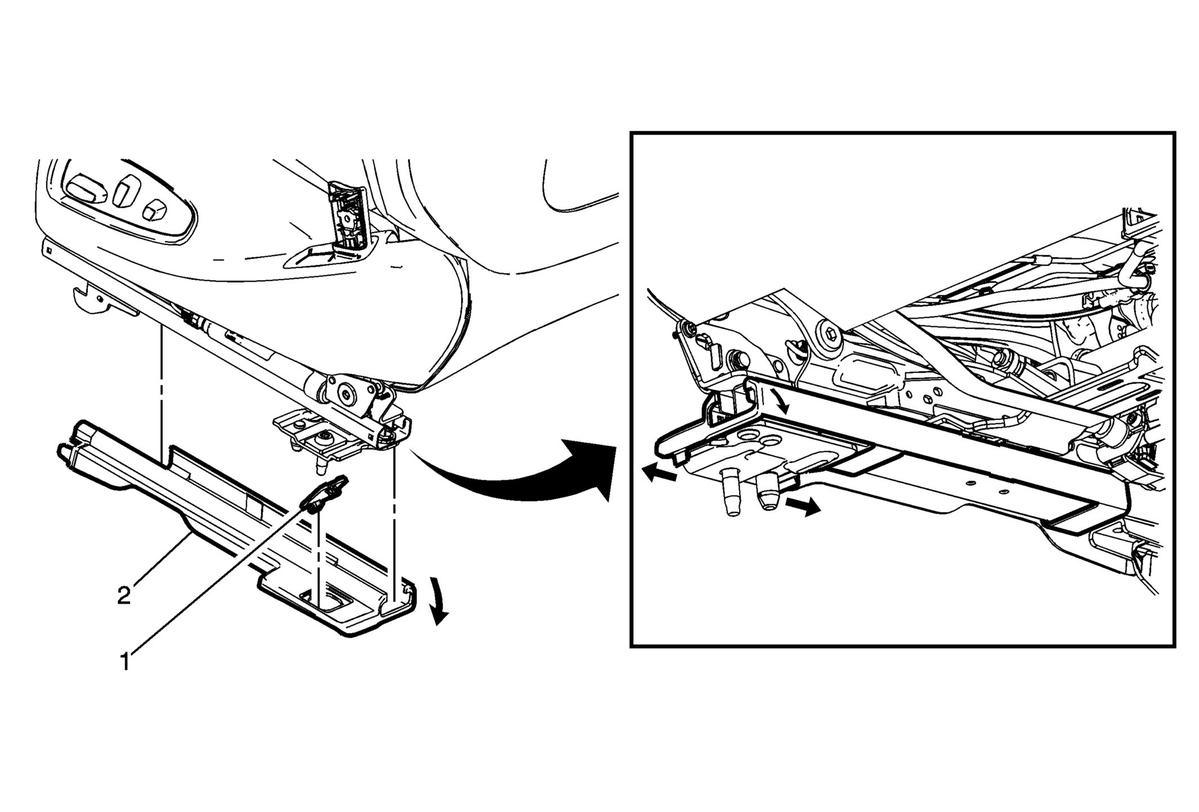

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
1	Front Seat Outer Adjuster Front Finish Cover Fastener Cap
2	Front Seat Outer Adjuster Front Finish Cover CAUTION: Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Firmly grasp the lower rear area of the finish cover, this area needs to be flexed outward then downward to disengage it from the seat cushion track. Remove the finish cover by gently pulling the cover outward to disengage it fully from the seat cushion track.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation

Front Seat Outer Adjuster Front Finish Cover Fastener Cap

Front Seat Outer Adjuster Front Finish Cover

CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure

Firmly grasp the lower rear area of the finish cover, this area needs to be flexed outward then downward to disengage it from the seat cushion track.
Remove the finish cover by gently pulling the cover outward to disengage it fully from the seat cushion track.
