Rear Side Door Sill Garnish Molding Replacement

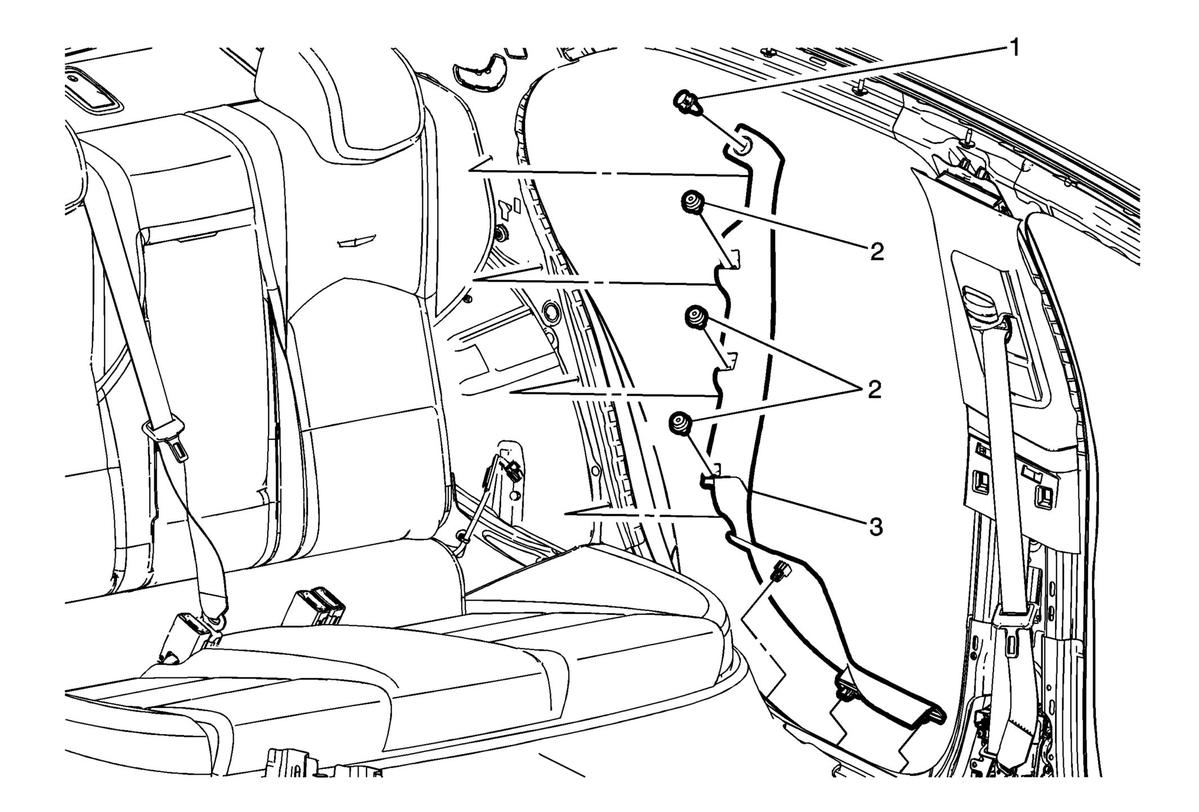

Callout	Component Name
Preliminary Procedures Remove the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement . Remove the rear seat back cushion, if equipped with without AM9 fixed seat back. Refer to Rear Seat Back Cushion Removal and Installation (40% with AM9)Rear Seat Back Cushion Removal and Installation (60% with AM9)Rear Seat Back Cushion Removal and Installation (without AM9) .
1	Rear Side Door Sill Trim Plate Clip
2	Rear Side Door Sill Trim Plate Retainer (Qty: 3) Procedure Slide the molding off of the retainers, replace the sill trim plate retainers, as needed.
3	Rear Side Door Sill Garnish Molding Assembly Procedure Use the appropriate plastic trim tool to aid in the removal of the rear side door sill garnish molding.
