Front Parking Assist Alarm Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)

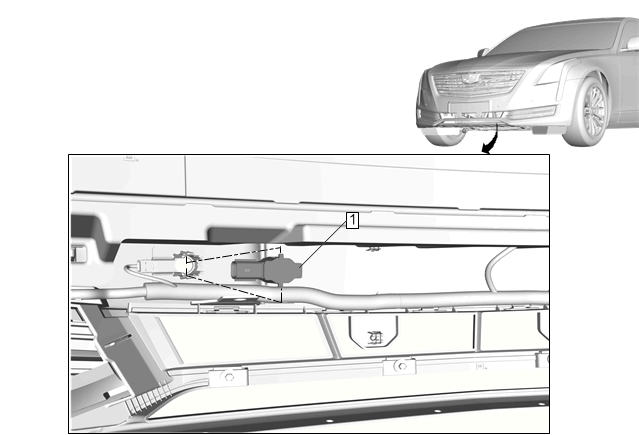

1	Front Parking Assist Alarm Sensor[4x] Procedure Disconnect the electrical connector. Release the locking tab from the advance parking assist alarm sensor bracket. NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Callout

Component Name

Front Parking Assist Alarm Sensor[4x]

Procedure

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative
