Instrument Panel Lower Airbag Replacement (Passenger Side)

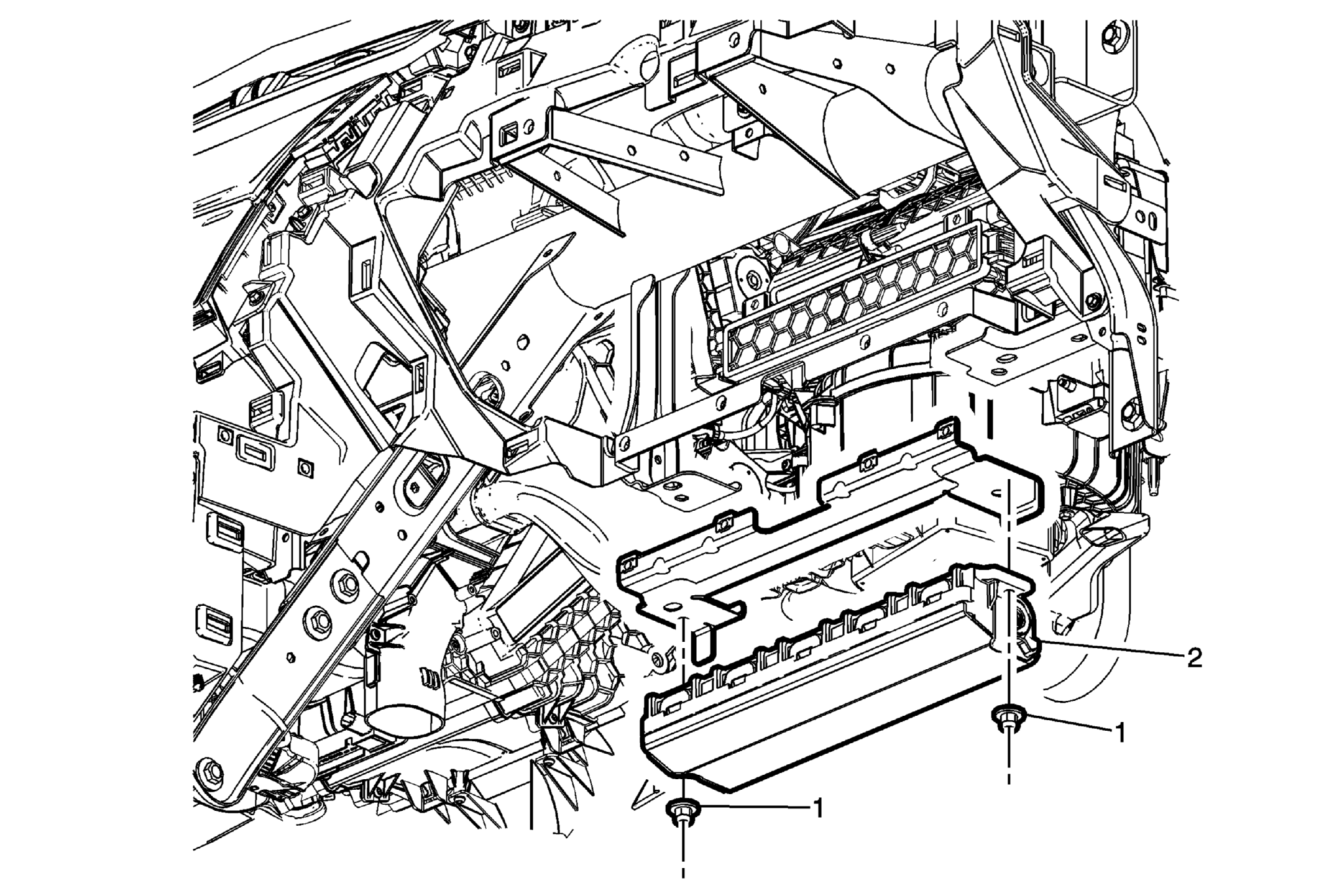

Fig 1: Instrument Panel Lower Airbag & Nuts (Passenger Side)
GM2769696Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the right instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1 Instrument Panel Lower Airbag Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Instrument Panel Lower Airbag Assembly

Procedure

  1. Refer to Inflatable Restraint Module Handling and Scrapping .
  2. Enable the SIR system. Refer to SIR Disabling and Enabling .
