Instrument Panel Insulator Panel Replacement - Right Side

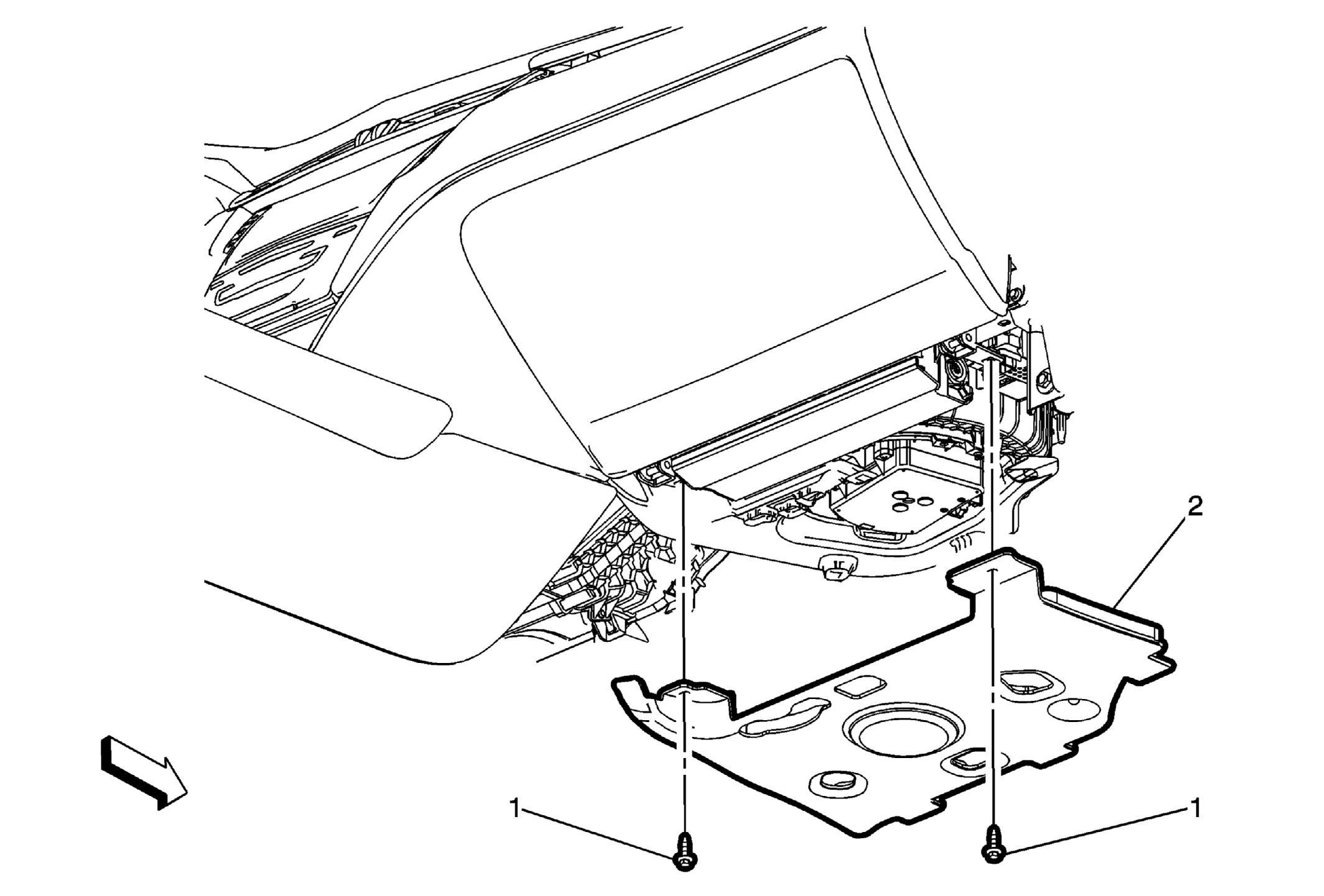

Fig 1: Instrument Panel Insulator Panel & Bolts - Right Side
GM2753808Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Insulator Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Insulator Panel - Right Side

Procedures

  1. Disconnect the electrical connection.
  2. When replacing the insulator panel, transfer all necessary components.
