Evaporative Emission Canister Purge Solenoid Valve Replacement (LF3)

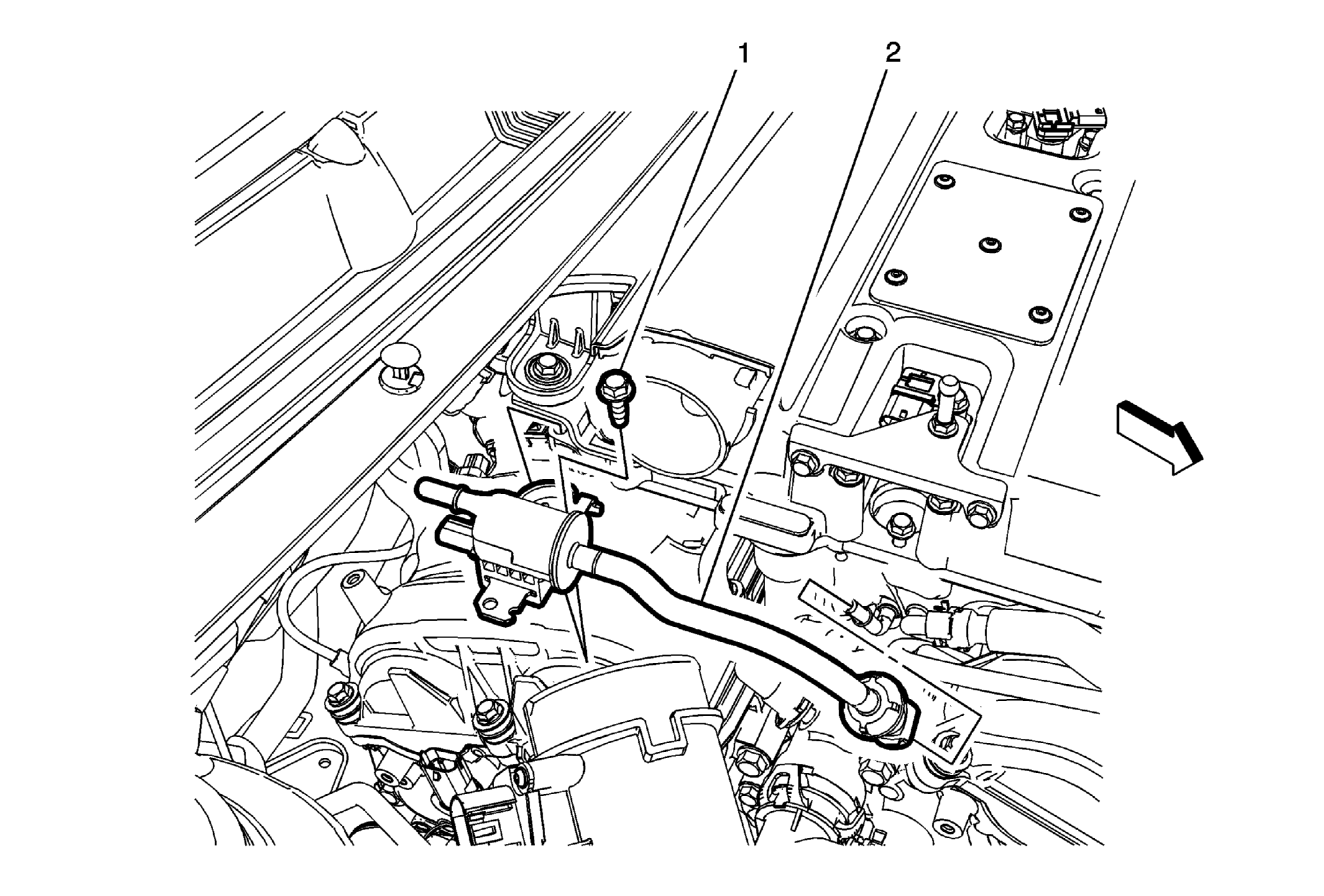

Fig 1: Evaporative Emission Canister Purge Solenoid Valve (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) . Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement (LF3) . Disconnect EVAP pipe from purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
1	Evaporative Emission Canister Purge Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Evaporative Emission Canister Purge Solenoid Valve Procedure Disconnect quick connect fitting at engine. Refer to Plastic Collar Quick Connect Fitting Service .

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) .
Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement (LF3) .
Disconnect EVAP pipe from purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Canister Purge Solenoid Valve Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Evaporative Emission Canister Purge Solenoid Valve
Procedure
Disconnect quick connect fitting at engine. Refer to Plastic Collar Quick Connect Fitting Service .
