Air Cleaner Outlet Resonator Replacement (LF3)

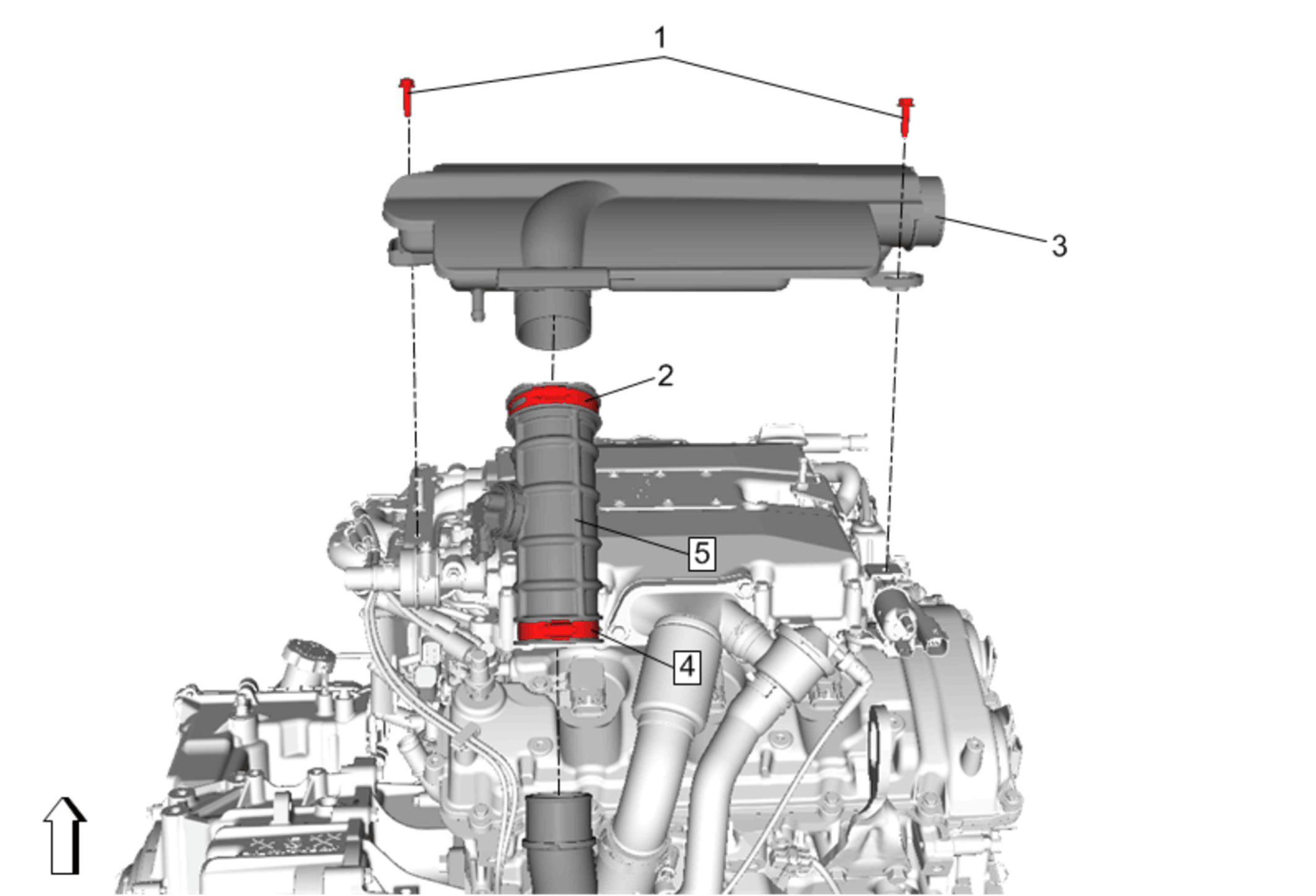

Fig 1: Air Cleaner Outlet Resonator (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement (LF3) Disconnect the air cleaner outlet rear duct from the air cleaner outlet resonator. Air Cleaner Outlet Rear Duct Replacement (LF3) Disconnect the PCV tube from air cleaner outlet resonator.
1	Air Cleaner Outlet Resonator Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Air Cleaner Outlet Resonator Clamp Tighten 4 N.m (35 lb in)
3	Air Cleaner Outlet Upper Resonator
4	Air Cleaner Outlet Resonator Clamp Tighten 4 N.m (35 lb in)
5	Air Cleaner Outlet Lower Resonator Procedure Disconnect the MAP sensor electrical connector.
