Charge Air Bypass Valve Replacement - Right Side (LF3)

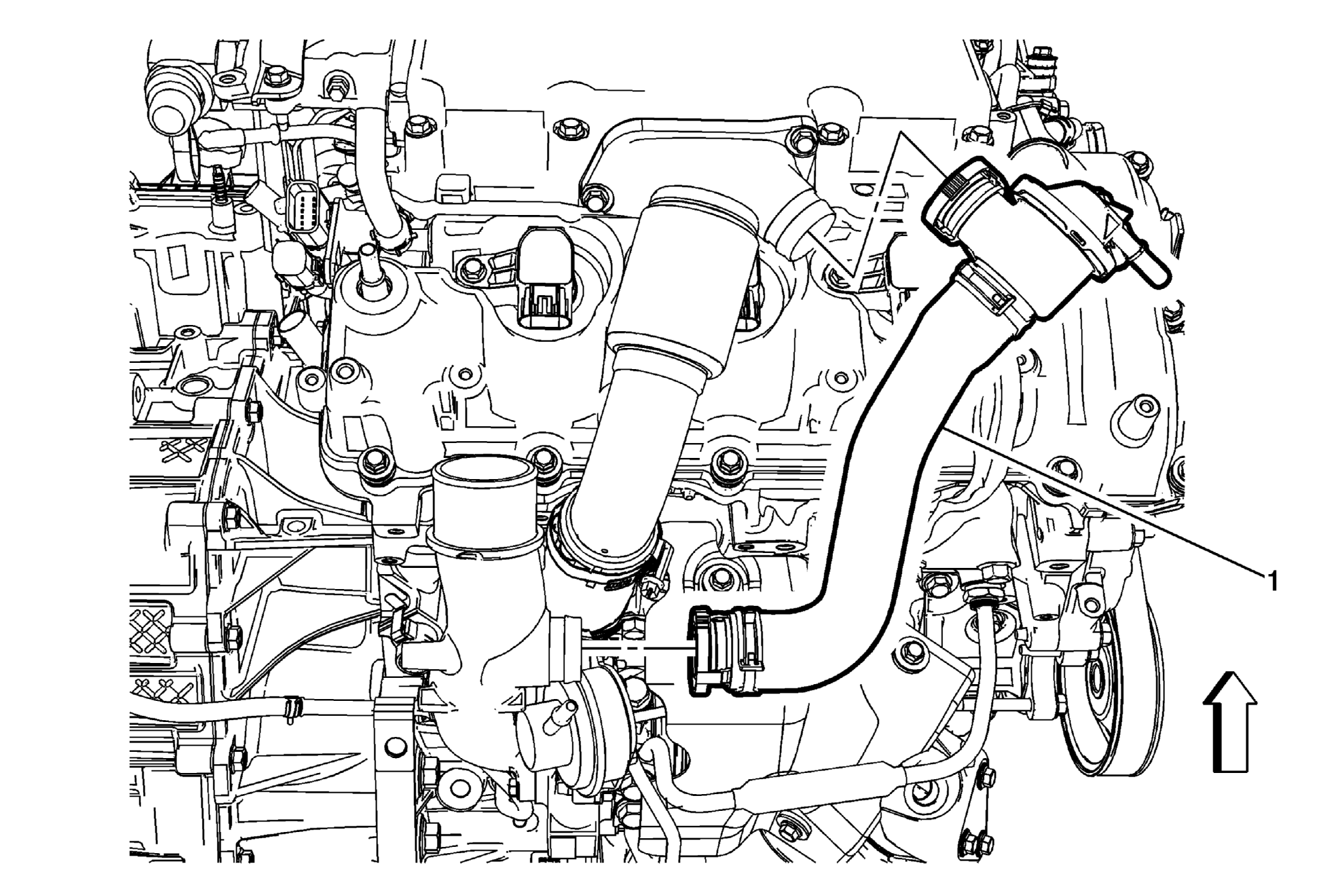

Fig 1: Charge Air Bypass Valve - Right Side (LF3)
GM3291026Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Resonator Replacement (LF3)
  2. Turbocharger Wastegate Actuator Replacement - Right Side (LF3)
  3. Remove the Drivetrain and front suspension frame. Drivetrain and Front Suspension Frame Replacement
  4. Disconnect the charge air bypass valve vacuum tank tube bundle rear section. Charge Air Bypass Valve Vacuum Tank Tube Replacement (Bundle Rear Section LF3) Charge Air Bypass Valve Vacuum Tank Tube Replacement (Bundle Front Section LF3) Charge Air Bypass Valve Vacuum Tank Tube Replacement (Left Cylinder Bank LF3)
1 Charge Air Bypass Valve
Procedure
Disconnect the quick connect fittings by squeezing both ends.
