Air Cleaner Outlet Rear Duct Replacement (LF3)

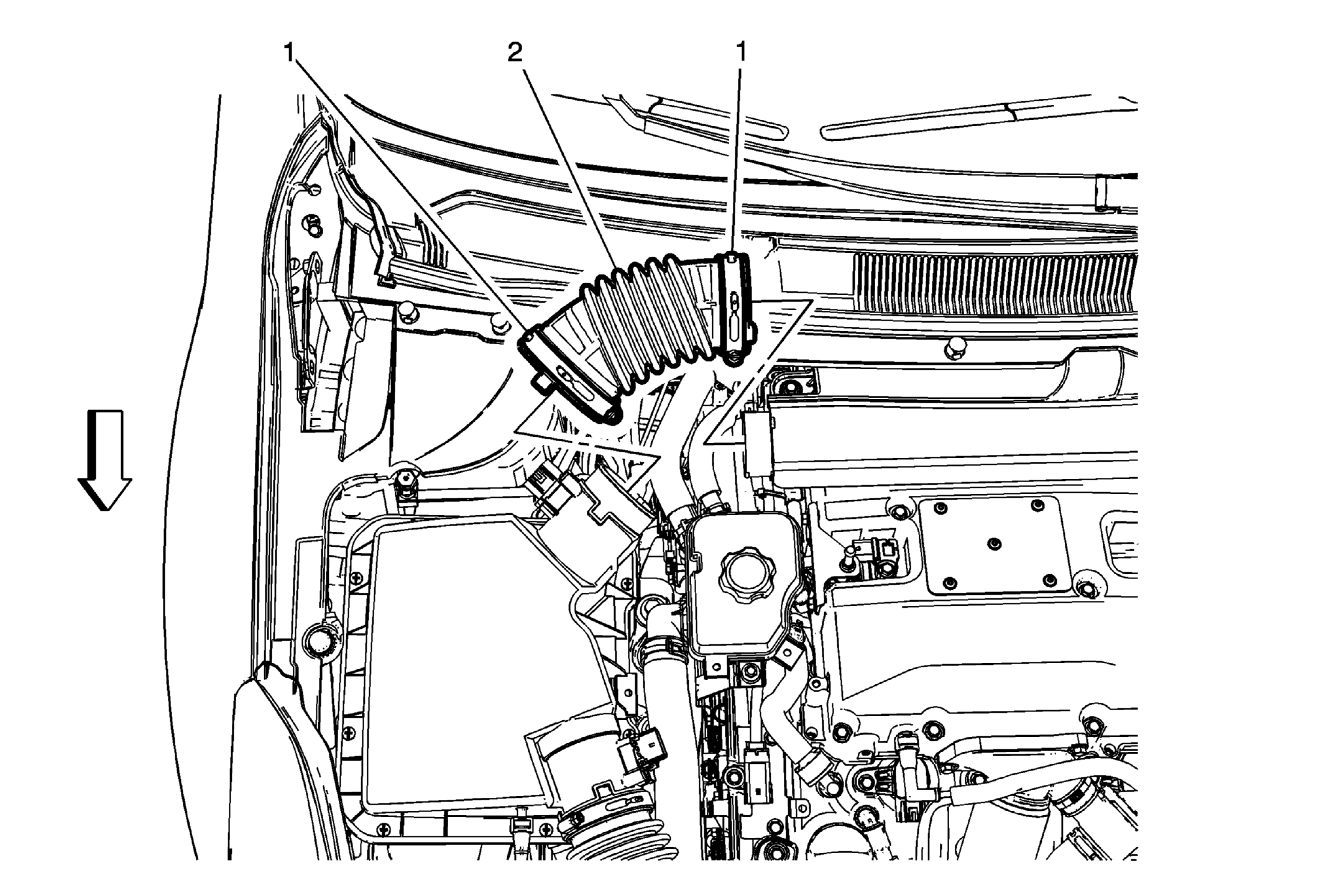

Fig 1: Air Cleaner Outlet Rear Duct (LF3)
GM3291040Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Outlet Rear Duct Clamps (Qty: 2)
CAUTION:

Refer to Fastener Caution .

NOTE:

Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
2 Air Cleaner Outlet Rear Duct
