Manifold Absolute Pressure Sensor Replacement (Resonator Outlet LF3)

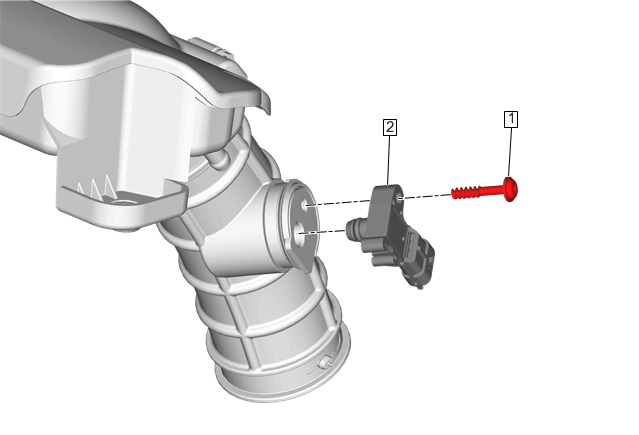

Fig 1: Manifold Absolute Pressure Sensor (Resonator Outlet LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Air Cleaner Outlet Resonator Replacement (LF3)
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
2	Manifold Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
