Removal Procedure

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement (LFX) .
  3. Remove the intake manifold. Refer to Intake Manifold Replacement (LFX) .
  4. Remove and DISCARD the fuel feed intermediate pipe. Refer to Fuel Feed Intermediate Pipe Replacement (LFX) .
    5. Fig 1: Fuel Injection Fuel Rail Noise Shield
    GM3319484Courtesy of GENERAL MOTORS COMPANY
  5. Remove the fuel injection fuel rail noise shield (1) from the engine (2).
    6. Fig 2: Fuel Pressure Sensor And Electrical Connector
    GM2497626Courtesy of GENERAL MOTORS COMPANY
  6. Cut the plastic tie strap (1).
  7. Disconnect the fuel pressure sensor electrical connector (2).
  8. Remove the fuel pressure sensor (3).
  9. Disconnect the bank 2 fuel rail electrical connector.
  10. Remove Fuel Feed Pipe - at engine Fuel Feed Pipe Replacement (At Tank AWD) Fuel Feed Pipe Replacement (LF3 At Engine)

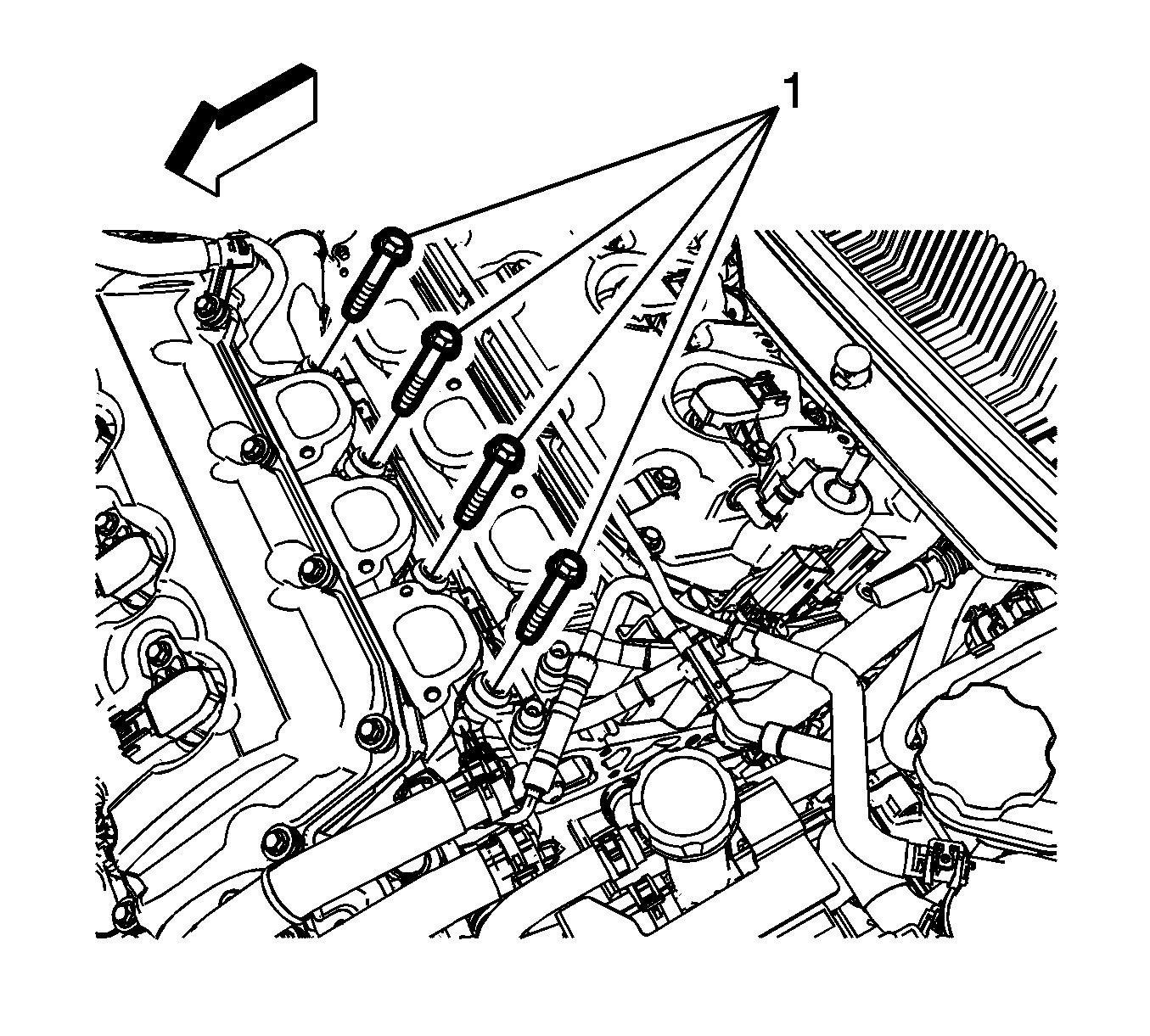

    11. Fig 3: Bank 2 Fuel Rail Fasteners
    GM3319603Courtesy of GENERAL MOTORS COMPANY
  11. Remove the bank 2 fuel rail fasteners (1).

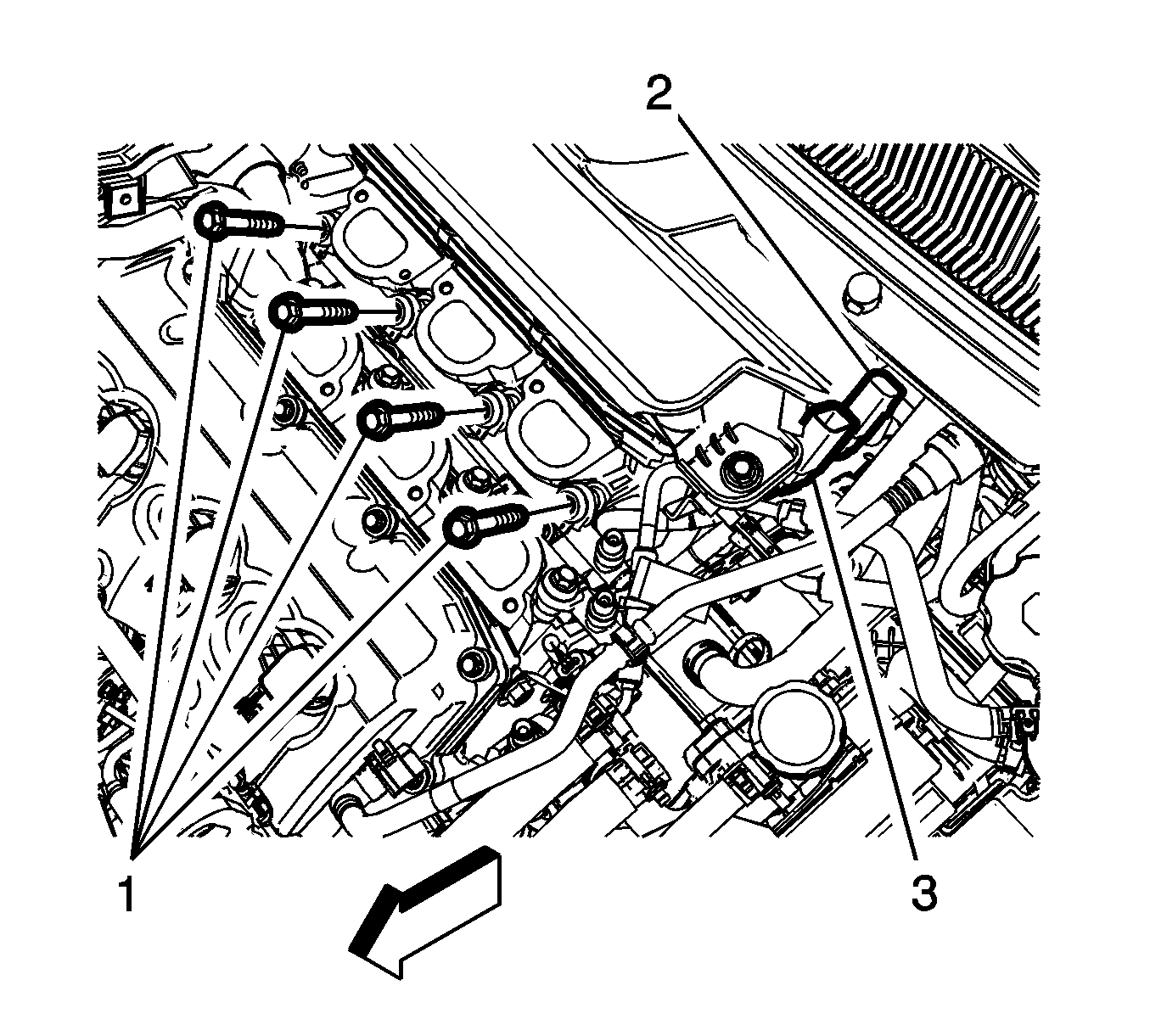

    12. Fig 4: Bank 2 Fuel Rail Electrical Connector And Bank 1 Fuel Rail Fasteners
    GM3319576Courtesy of GENERAL MOTORS COMPANY
  12. Remove the bank 1 fuel rail fasteners (1) for clearance purposes.

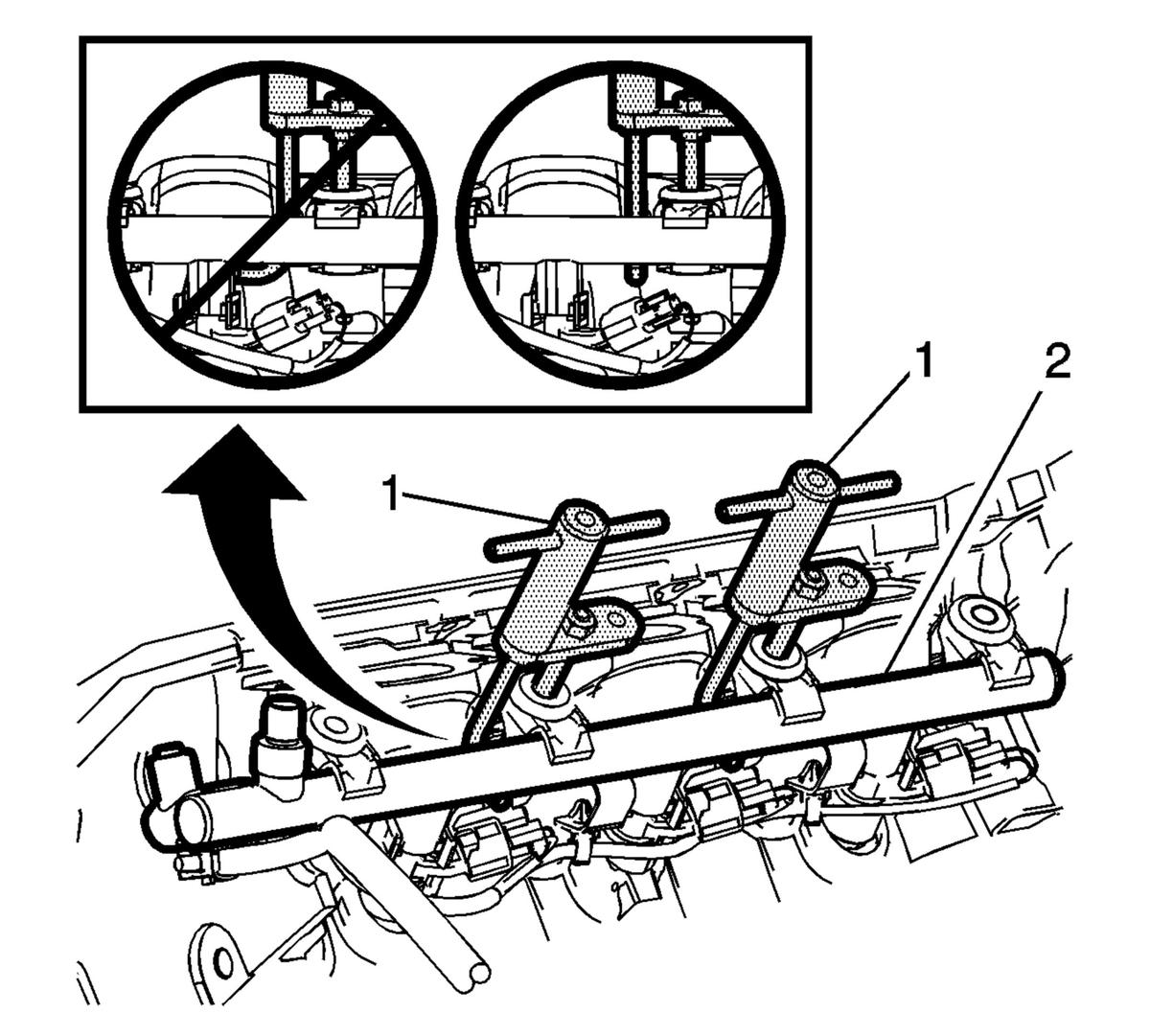

    13. Fig 5: Raising Fuel Rail With Special Tool
    GM3319701Courtesy of GENERAL MOTORS COMPANY
  13. Using the EN-49248-4  hook (1), raise the fuel rail (2) as an assembly.
  14. Once the fuel rail is free, remove the EN-49248  remover (1).

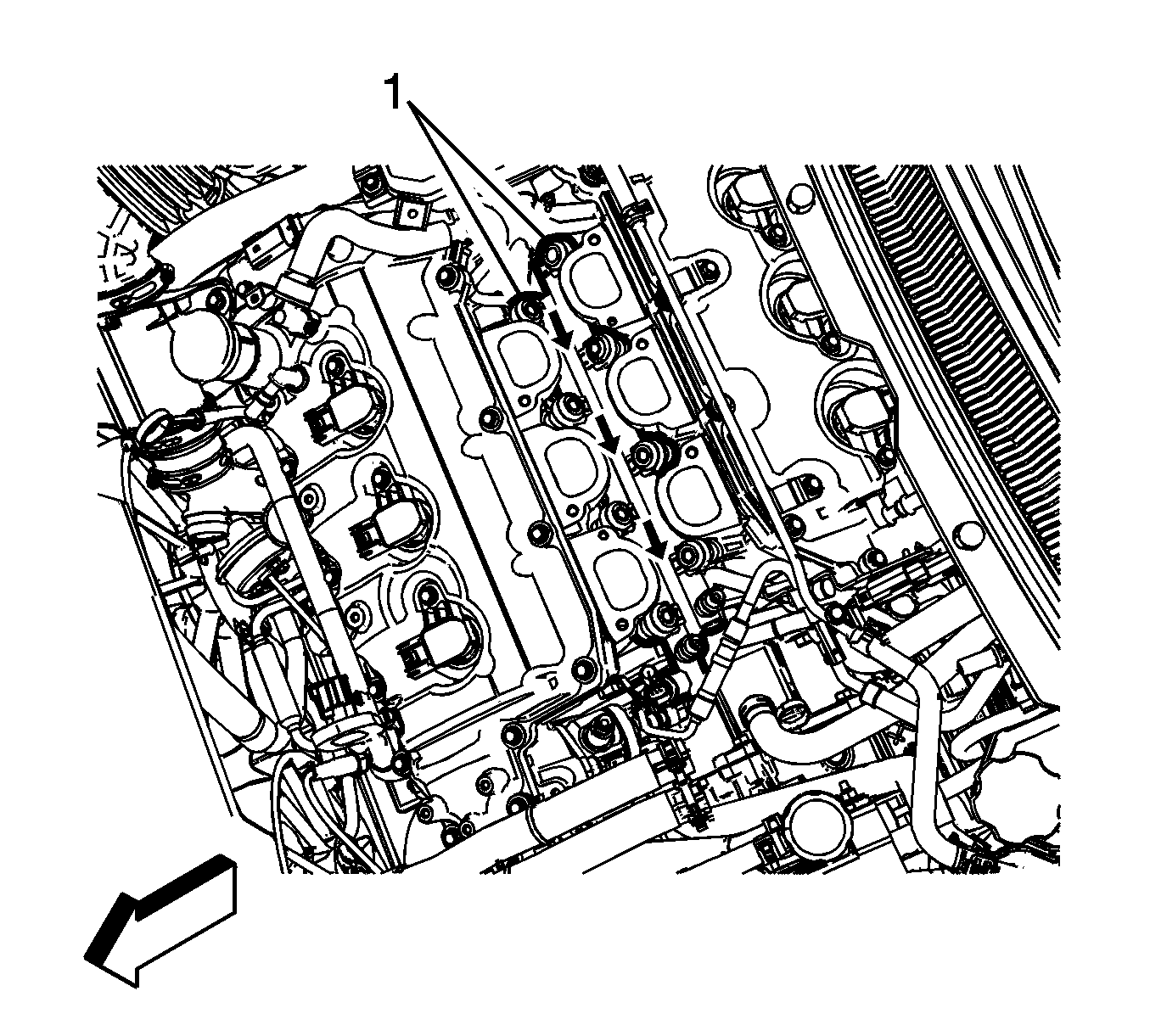

    15. Fig 6: Sliding Fuel Rail Toward Rear Of Engine
    GM3319752Courtesy of GENERAL MOTORS COMPANY
  15. Slide the fuel rail (1) toward the rear of the engine approximately 1 inch (25.4mm), in order to clear the center injector bore.
    16. NOTE:

    The direct fuel injectors must be rebuilt whenever the injector has been released from the fuel rail or cylinder head.

  16. Once the fuel rail is removed, remove the fuel injectors and rebuild them. Refer to Fuel Rail and Injectors Cleaning and Inspection (LF3) .
