Fuel Feed Pipe Replacement (At Tank AWD)

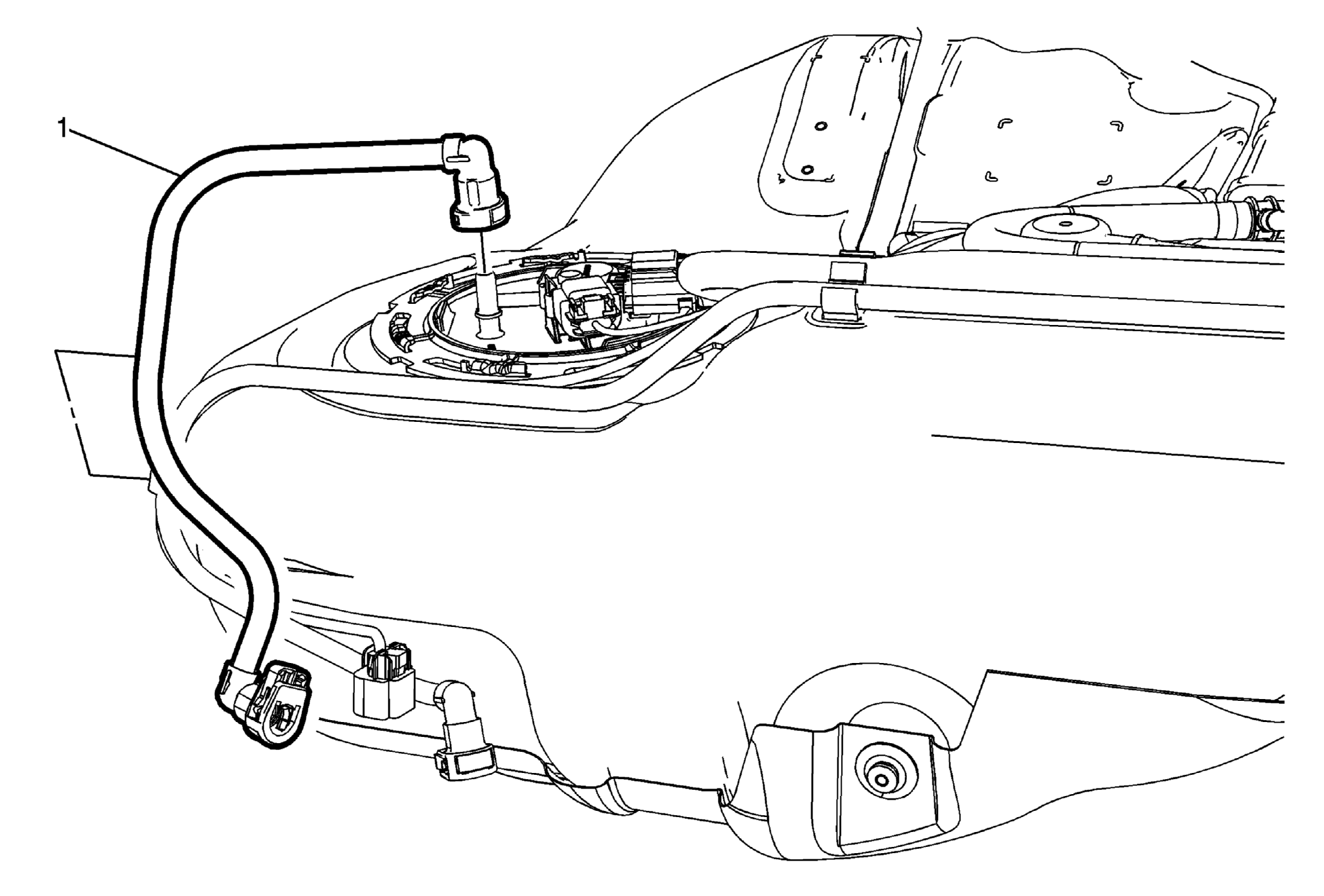

Fig 1: Fuel Feed Pipe At Tank (With AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
1	Fuel Feed Pipe Procedure Disconnect the fuel feed pipe from the fuel tank retainer. Disconnect the fuel feed pipe from the fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service .

Callout

Component Name

Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .

Fuel Feed Pipe

Procedure

Disconnect the fuel feed pipe from the fuel tank retainer.
Disconnect the fuel feed pipe from the fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service .
