Quarter Window Lower Trim Finish Panel Replacement

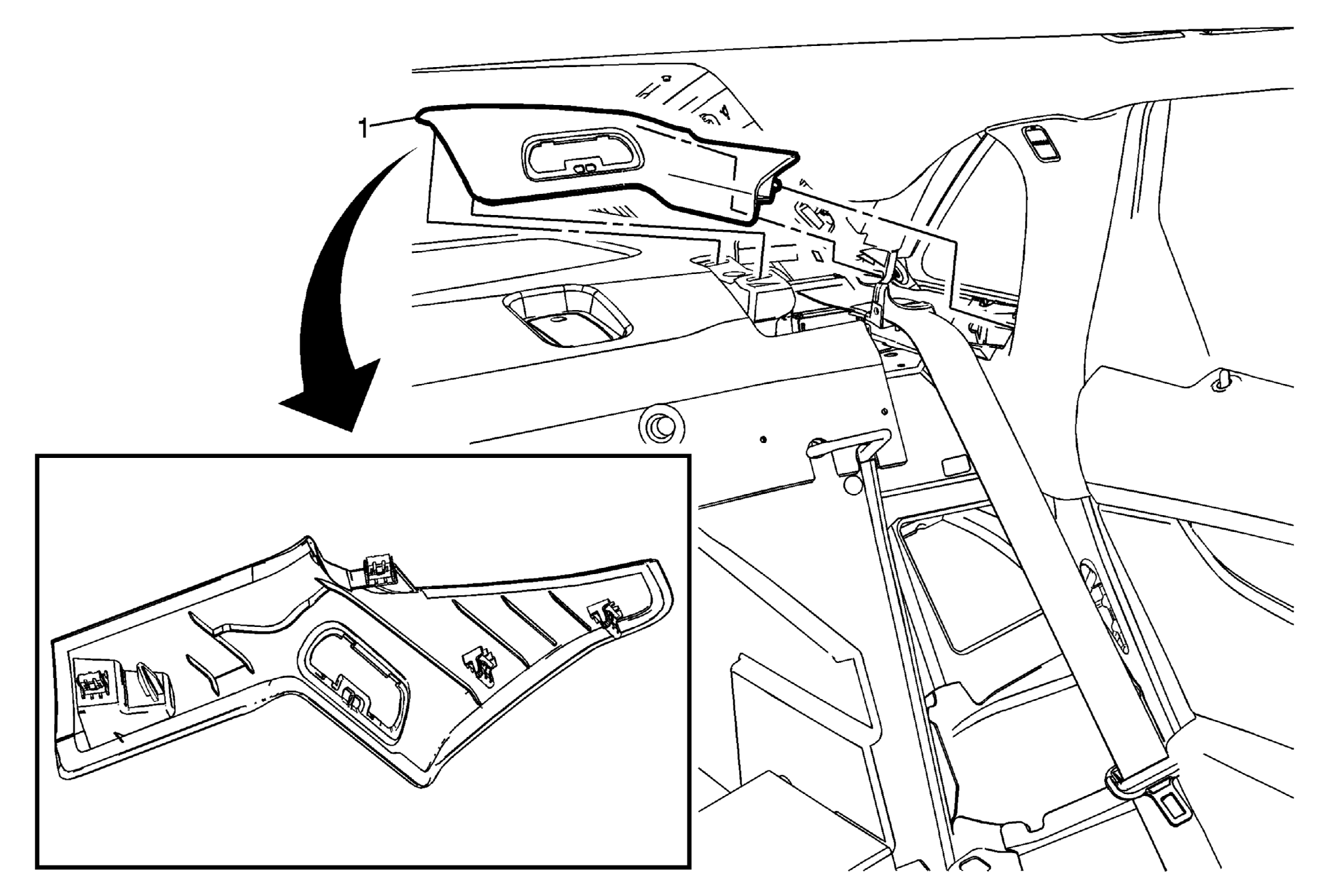

Fig 1: Quarter Window Lower Trim Finish Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement .
1	Quarter Window Lower Trim Finish Panel Assembly Procedure Route the seat belt through trim panel.

Callout

Component Name

Preliminary Procedure

Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement .

Quarter Window Lower Trim Finish Panel Assembly
Procedure
Route the seat belt through trim panel.
